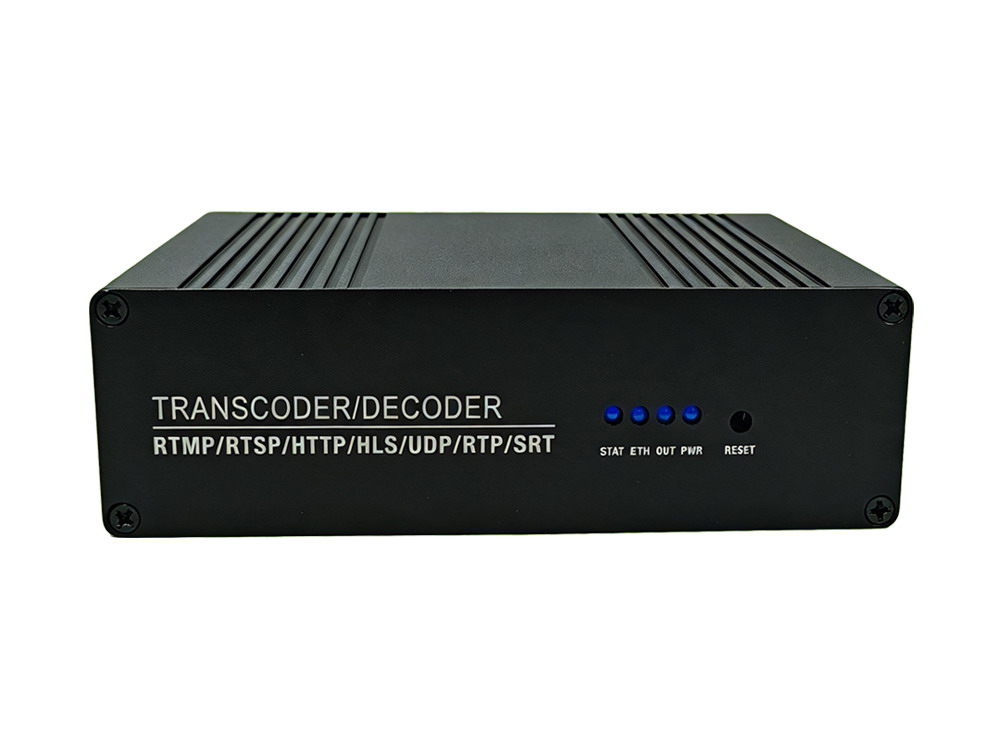

OPR-DT10 4K H.264 / H.265 IP-to-IP Video Transcoder, Decoder & Stream Forwarder

H.264 / H.265 IP-to-IP Video Transcoder / Decoder and Stream Forwarder is a real-time network video processing solution designed for IP stream receiving, decoding, transcoding, and stream forwarding applications.

The device supports video streams from various IP sources, including H.265/HEVC, H.264/AVC, AV1, VP9, and AVS2 streams. It can decode, transcode, re-encode, and restream video content in real time, converting incoming IP streams into different output protocols such as RTMP, HLS, UDP, SRT, and more.

With flexible configuration options, users can adjust key parameters including bitrate, resolution, frame rate, and encoding profiles to meet different application requirements. Supporting high-quality, low-latency video processing, the solution is ideal for professional broadcasting, IPTV, OTT streaming, live streaming, surveillance systems, and enterprise video distribution.

Key Features:

1. Multi-Channel IP Stream Processing

Supports simultaneous processing of multiple video streams, enabling efficient operation for large-scale applications such as IPTV platforms, broadcasting systems, live streaming, and surveillance networks.

2. Multi-Format Video Compatibility

Supports a wide range of video compression formats, including:

H.264 / AVC, H.265 / HEVC, AV1, VP9, AVS2
Providing excellent compatibility with various IP video sources and streaming environments.

3. Real-Time Decoding and Transcoding

Provides real-time video decoding, scaling, format conversion, and re-encoding capabilities while maintaining high image quality and optimized processing performance.

4. Flexible Stream Conversion and Forwarding

Supports IP stream receiving, protocol conversion, and stream forwarding with multiple input/output protocols, including:
RTMP/ RTSP /HTTP TS/HTTP FLV/HLS/MP4/SRT/UDP /RTP Other IP streaming formats.

Enabling seamless restreaming and distribution across different streaming platforms and network environments.

5. Flexible Video Parameter Configuration

Provides flexible control over:

Bitrate, Resolution, Frame Rate, GOP, Encoding Profile, Compression Parameters.

Allowing users to optimize video quality, bandwidth efficiency, and compatibility with different devices.

6. High-Quality Low-Latency Processing

Delivers efficient video conversion with low latency and stable performance, ensuring smooth transmission for real-time video applications.

7. Scalable Video Processing Platform

Designed with a flexible architecture to support expanding video processing requirements and future application upgrades.

Product features

1. Adopts professional encoding chip, embedded Linux System, high stability and efficiency.
2. Friendly Web Control UI, default IP is 192.168.1.169.

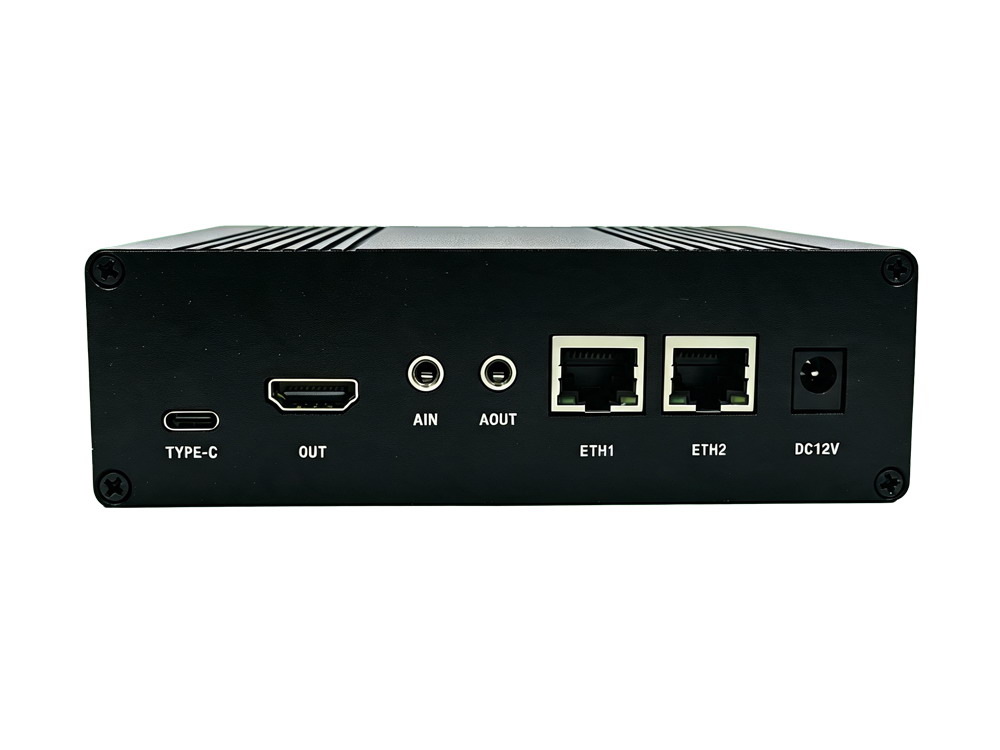

3. Support input & output HTTP / SRT/ HLS/ FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
4. Support Graphics/Text/ Scrolling text /Time OSD.
5. Support Analog audio input.
6. Support firmware upgrade.

Our Services

1. 1-Year Warranty.
2. Online, remote help.
3. Function customizes.
4. OEM & ODM welcomed.

OPR-DT10 4K H.264 H.265 IP Video Transcoder, Decoder & Stream Forwarder Guide.pdf
