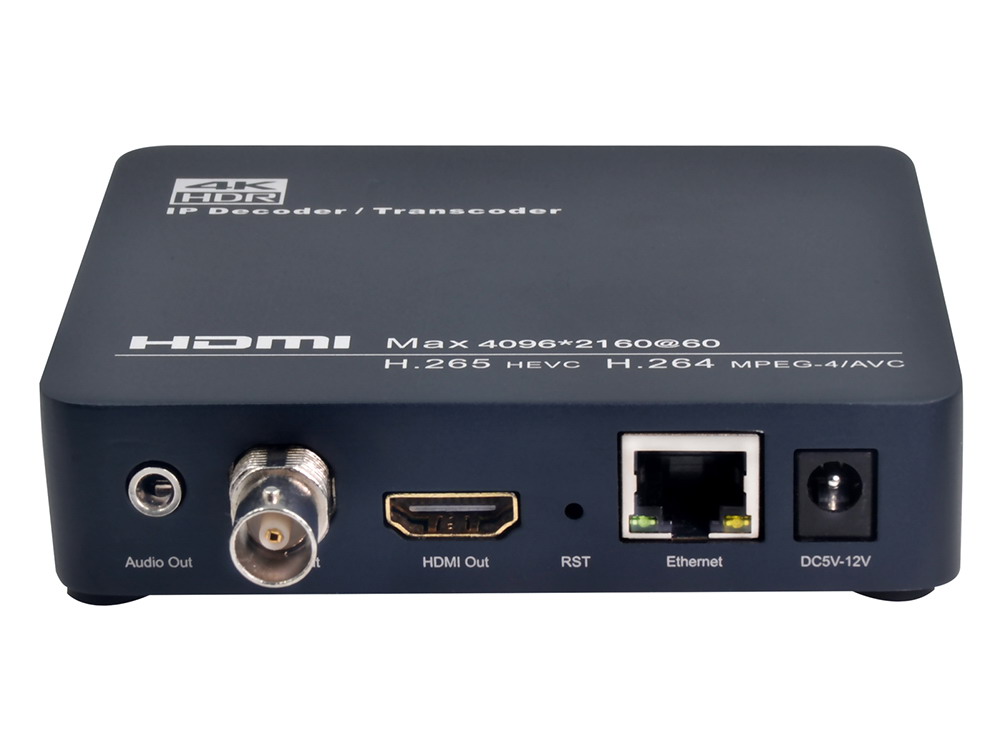

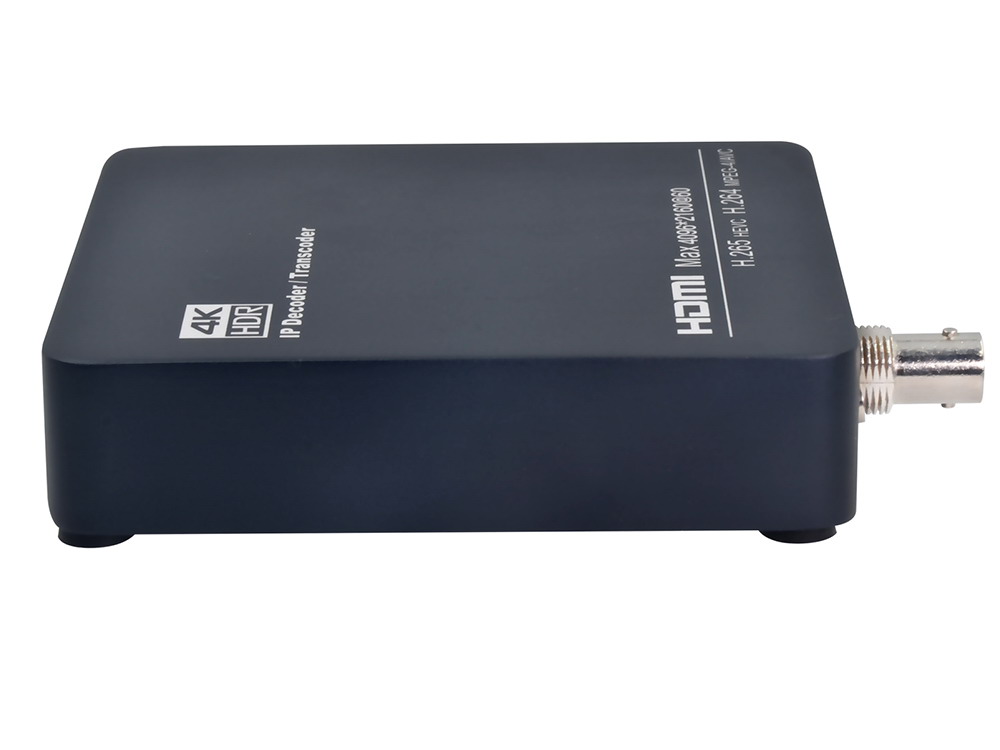

OPR-DT4KP 4K 60FPS HDMI CVBS Video Decoder Transcoder
- Description
- Specs
- Downloads
OPR-DT4KP H265 4K60fps HDMI CVBS IP Video Decoder - IP Video Transcoder - This IP Video Decoder & Transcoder can receive the SRT/HTTP(S)/HLS/FLV/RTSP/RTMP(S)/UDP/RTP (Unicast/Multicast) stream from our HDMI/VGA/SDI/CVBS IP stream encoder or media streaming server, platform, and decode H.265/H.264 video & audio, then output HDMI, CVBS, and L/R stereo audio. Additionally, it can perform IP transcoding to output H.265 or H.264 IP TS with different resolutions and FPS. Its high level of integration and cost-effective design make this device widely used in various fields such as advertising display, CCTV, long-distance video transfer, IPTV, etc.
Product features
1. Embedded HiLinux System, stable and effective, 7 x 24h working time.
2. Friendly Web Control UI, default IP is 192.168.1.169.
3. Support SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) streaming decoding & IP streaming transcode.
4. Support output resolution - 4096x2160@60fps, 1080P/1080I/720P@60FPS, etc.
5. With English control panel & language customizable.
6. Support H.265/H.264 baseline /main /high profile & MJPG MP2 etc., decoding.
7. Support firmware upgrade.
8. Support remote control via router port forward.
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. Long distance video transfer.
2. Internet TV (IPTV) HD capture system
3. Internet video conference front-end capture
4. Digital signage HD streaming server
5. Teaching broadcast
6. Network monitoring system platform front-end capture
| IP Stream Input | |
| IP TS | RTSP/ HTTP/ HLS/ FLV/ RTMP(S)/ UDP/ RTP/ SRT |
| Private Protocol | HTTP PTE |
| Video Decodec | |
| Video Decode Type | H.265/ H.264/ MJPEG/ MPEG2/ MPEG4/ AVS/ AVS2 |
| Video Decode FPS | 1-60fps |
| Video Decode Resolutions | Max support 4096*2160, 3840*2160@60fps, 1080P/ 720P |
| Input IP | 1 SPTS/ MPTS |
| Audio Decode Format | AAC/ AAC_AT/ AAC_FIXED/ AAC_LATM/ AASC/ AC3/ AC3_AT/ AC3_FIXED/ G729/ GSM/ GS_MS/ GSM_MS_AT/ MP1/ MP1_AT/ MP1FLOAT/ MP2/ MP2_AT/ MP2FLOAT/ MP3/ MP3_AT/ MP3ADU/ MP3ADUFLOAT/ MP3FLOAT/ MP3ON4/ MP3ON4FLOAT/ PCM_ALAW/ PCM_MULAW/ ADPCM_G726 |
| HDMI Output Resolution | 4096x2160P60/ 4096x2160P50/ 4096x2160P30/ 4096x2160P25 / 3840x2160P60/ 3840x2160P50/ 3840x2160P30/ 3840x2160P25 / 1440P60/ 1920x1200P60/ 1080P60/ 1080I60/ 1080P50/ 1080I50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60 |
| CVBS | PAL/ NTSC |
| Color | Brightness, Contrast, Hue, Saturation |
| HDMI Audio | 48kHz L/ R Stereo Audio |
| Analog Audio | 3.5MM L/ R Stereo Audio |
| Audio Output | Enable/ Disable |
| Transcodec | |
| Video Encode Format | H.265/ HEVC main profile H.264/ AVC High/ Main/ Baseline Profile |
| Video Encode FPS | 5-60fps |
| Video Encode Key Frame intervals (FPS) | 5-300 |
| Video Encode Bit Rate (kbps) | 32-100000 |
| Video Encode Resolution |
1920x1080/ 1680x1056/ 1600x900/ 1280x720/ 1024x768/ 850x480/ 720x576/ 720x540/ 720x480/ 720x404/ 704x576/ 640x480/ 640x360/ 608x448/ 544x480/ 480x480/ 480x384/ 480x360/ 480x320/ 480x272/ 480x270/ 400x320/ 400x224/ 352x480/ 352x228/ 320x256/ 320x240/ 320x180/ 240x180/ 176x144 |
| Video Encode TS | HTTP TS/ HTTP FLV/ HLS/ RTSP/ RTMP(S)/ UDP/ RTP/ SRT |
| Audio Sample Rates | 48kHz |
| Audio Encode | AAC G711 |
| Miscellaneous | |
| Ethernet | 1000Mbps, RJ-45 |
| Control Method | Web based management – IP 192.168.1.169 |
| Power adapter | AC input 100-240V 50/ 60Hz DC output 12V 2A |
| Power consumption | Max power consumption: ~ 5 W |
| Operating temperature | -10 to 70 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Dimension (L× W× H)mm | 105x105(125mm including the BNC-CVBS)x23 |
| Approx weight | 240g |
