MP10U H.265 UVC HDMI Media Player
- Description
- Specs
- Downloads
H.265 UVC HDMI Media Player – complete with video encoder and decoder functions, is a versatile professional audio and video decoding device. It is capable of supporting H.265/H.264 IP Stream inputs or playing video files from a USB drive, and outputting to HDMI and USB (UVC to computer). In addition, it can encode videos from the USB drive into various streaming formats, such as RTMP/RTMPS, HTTP, RTSP, SRT, UDP, RTP, etc. This multi-functional device provides a comprehensive solution for your audio and video needs.
With high integration and cost-effective design, this device widely used in variety of fields, such as Multimedia Distribution, Advertisement Display, Digital Signage, CCTV, Long Distance Video transmit (with our encoder), etc.
Product features
1. Embedded Linux System, stable and effective, 7 x 24h working time.
2. Friendly Web Control UI, default IP is 192.168.1.169.
3. Support output resolution - 1080P/1080I/720P@60FPS, etc.
4. USB Input: play videos from a USB drive.
5. USB Output: UVC to computer (UVC video capture and output to computer through USB)
6. Support Text and image insert as OSD output.
7. With English control panel & language customizable.
8. Support H.265/H.264 baseline /main /high profile decoding.
9. Support firmware upgrade.
10. Support remote control via router port forward.
As Encoder
Video source - Udisk video files with our transcode-tool.exe.

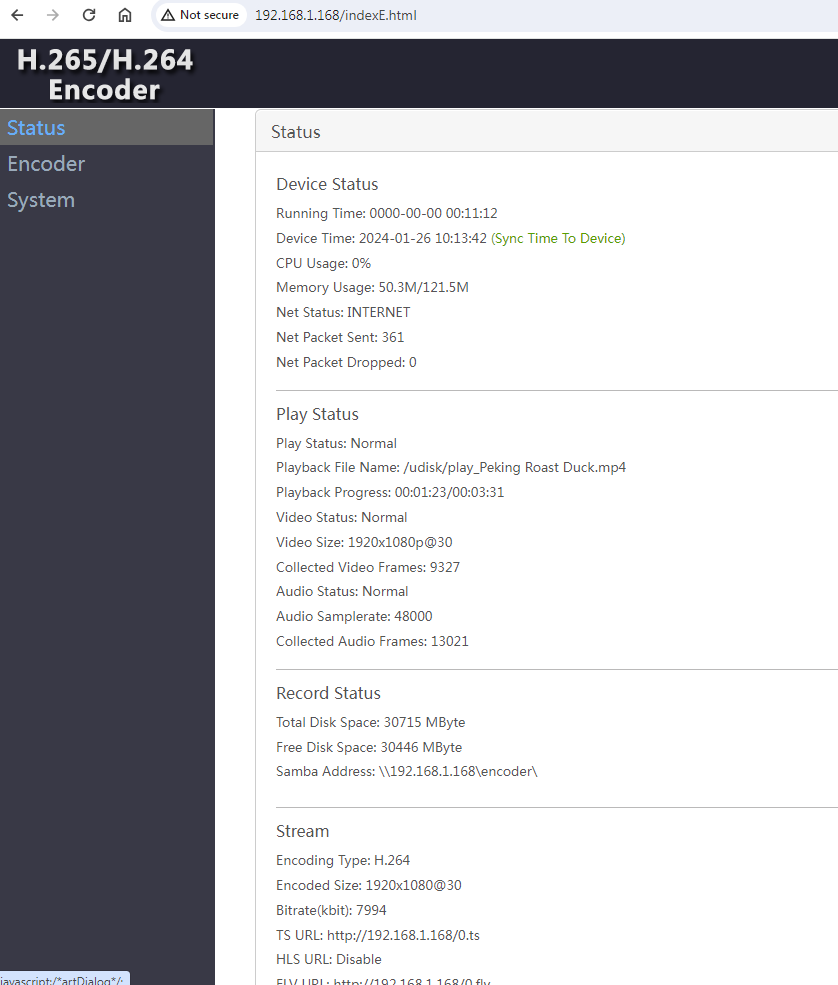

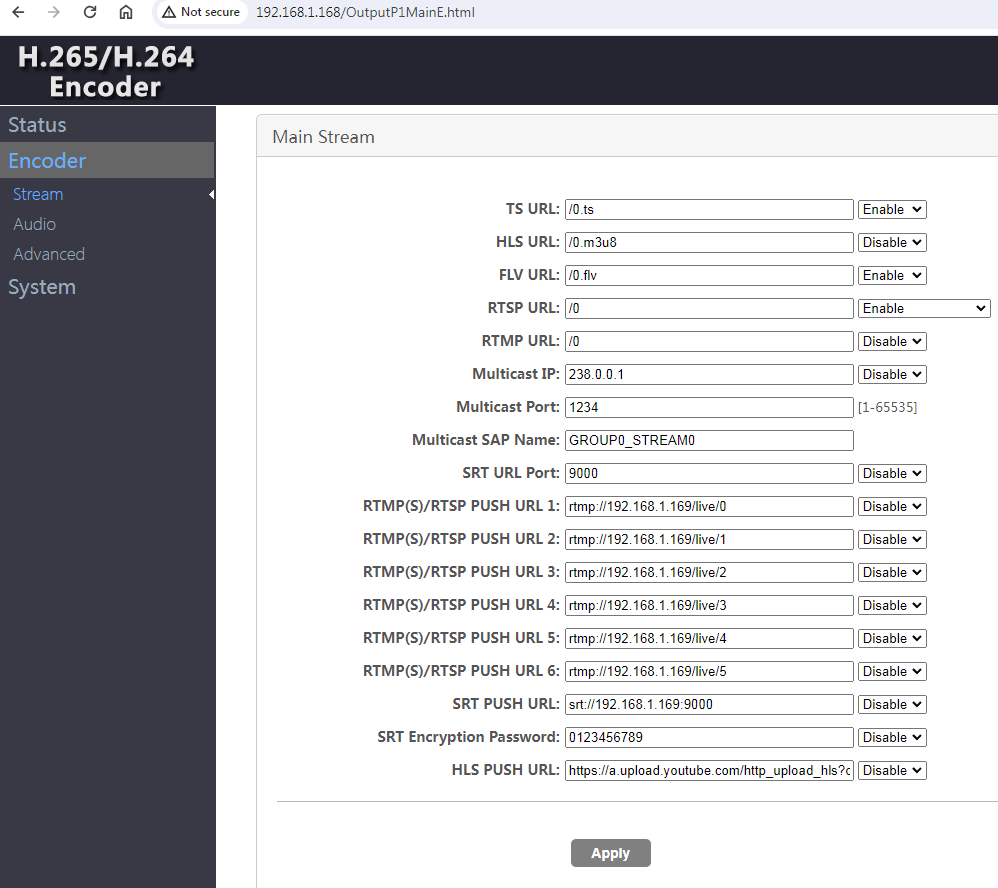

Encoder - settings page,

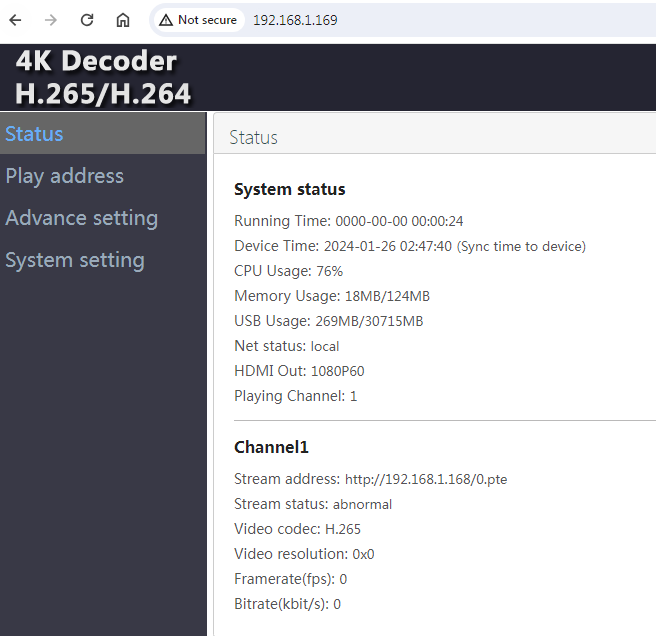

As Decoder

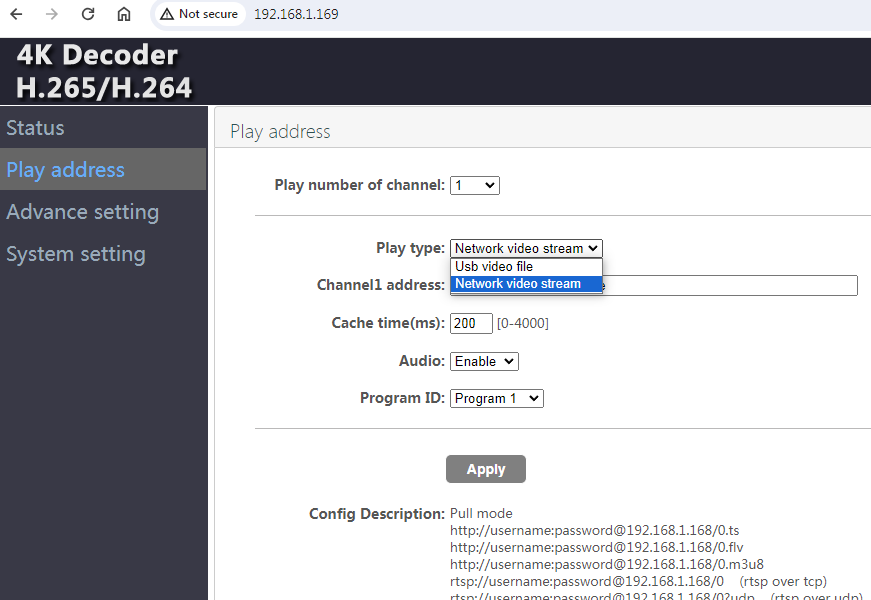

Play address, it support source from u-disk video files or network video streaming,
Application
1. Long Distance Video Transfer
Ideal for transmitting video signals over long distances, ensuring high-quality video delivery without significant loss in quality.
2. Internet TV (IPTV) HD Capture System
Perfect for capturing and streaming high-definition video content for IPTV systems.
3. Internet Video Conference Front-End Capture
Suitable for capturing video content for video conferencing applications, ensuring smooth and high-quality video transmission.
4. Digital Signage Player and HD Streaming Server
The MP10U can serve as a digital signage player, delivering high-quality video content to multiple displays. It can also function as an HD streaming server, distributing video content over a network.
5. Teaching Broadcast
Useful for educational institutions that need to broadcast high-quality video content for teaching purposes.
6. Network Monitoring System Platform Front-End Capture
The device can capture video content for network monitoring systems, ensuring efficient and reliable video surveillance.

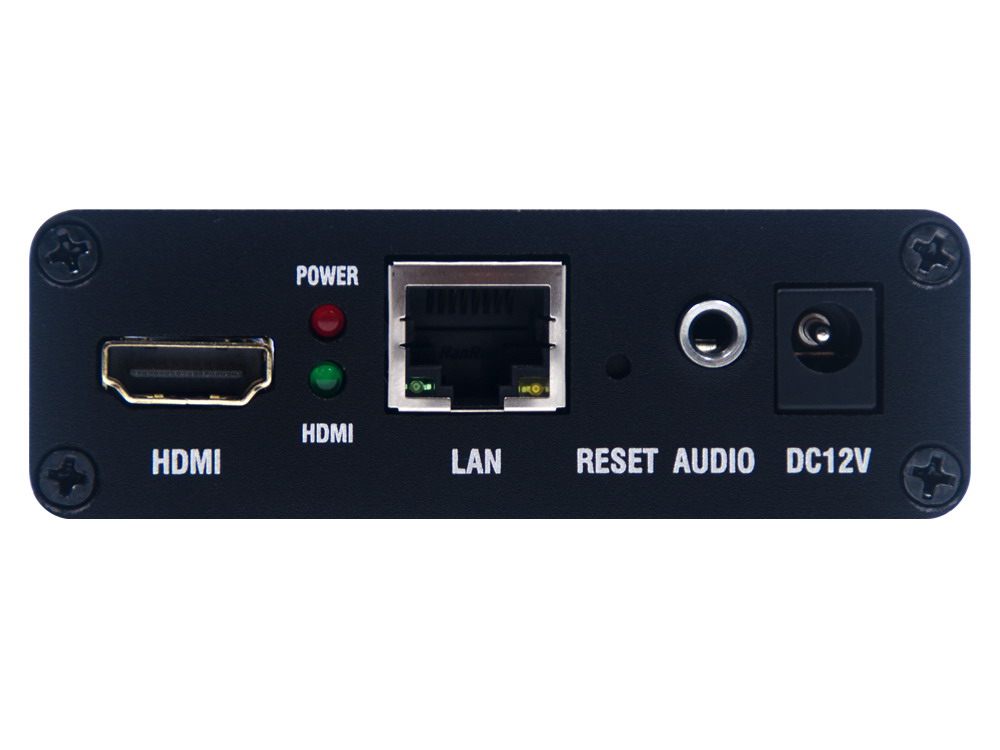

| Interface | HDMI | HDMI Video output - 1080P@60/ 1080P@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60 |
| LAN | Ethernet - 1000 Mbit/s full-duplex | |
| AUDIO | 3.5mm L/R stereo audio output | |
| USB IN | Video source - files from U-disk | |
| USB OUTPUT | UVC (USB Video Class) Video Capture for PC | |
| As an Encoder - Play the USB Video Files and Encode it, with HDMI output | ||
| Input | Video source - files from U-disk | H264 video files by our Transcoding Tool.exe, max supports 1080P@60fps |
| Audio | Follow the video file | |
| Video Playlist Modes | List Loop, Shuffle, Single Loop | |
| Video Codec | Protocols | WHIP WebRTC / SRT / HTTP(S) / FLV / RTSP / RTMP(S) / UDP/ RTP (Unicast/ Multicast), ONVIF, etc. |
| Resolution & FPS | same as the input video files (max 1080P@60fps) | |
| Bitrate (kbps) | same as the video file | |
| Audio Codec | Format | AAC/ AAC+/ AAC++/ AC3/ MP2/ MP3 (same as the video files') G711A/ G711U for RTSP /Onvif NVR |
| Audio Channels | L/ R Stereo | |
| Sampling rate | 8000/ 11250/ 22500/ 44100/ 48000 Hz | |
| As a Decoder - Play the USB Video Files or Decode NetworkStream, with HDMI output | ||
| Video Decode | Video Video Play type | USB Video Files - H264 video files by our Transcoding Tool.exe, max supports 1080P@60fps Network Video Stream |
| Network Video Stream | H.265 main profile H.264 baseline/ main/ high profile |
|
| Network Video Stream Max Resolution & FPS |
1 Channel 3840x2160@30fps or 2 channels 1080P@60fps or 3 channels 1080P@45fps or 4 channels 1080P@30fps |
|
| Support Audio Decoding | Format | AAC/ AAC+/ AAC++/ AC3/ MP2/ MP3 G711A/ G711U for RTSP /Onvif NVR |
| Audio Channels | L/ R Stereo | |
| Sample rates | 8000/ 11250/ 22500/ 44100/ 48000 Hz | |
| As an Encoder or Decoder | ||
| Video output | HDMI &UVC (USB Video Class) Video Capture for PC | 1080P@60/ 1080P@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60 |
| CSC | Brightness, Contrast, Hue, Saturation | |
| Audio output | HDMI | 48K Hz L / R |
| 3.5MM Analog | L / R | |
| Others | admin page | HTTP Web - http://192.168.1.169/ |
| Power | 12V 1A <5W | |
| Operating temperature | -20℃ + 80℃ | |
| Relative Humidity | 5% to 90% non-condensing | |
| Dimension (L× W× H) | 85 X 55 X 30mm | |
| Weight | 130g | |
