HDMI/NDI BiDirectional Converter

Get more information, message us now!
  • Description
  • Specs
  • Downloads

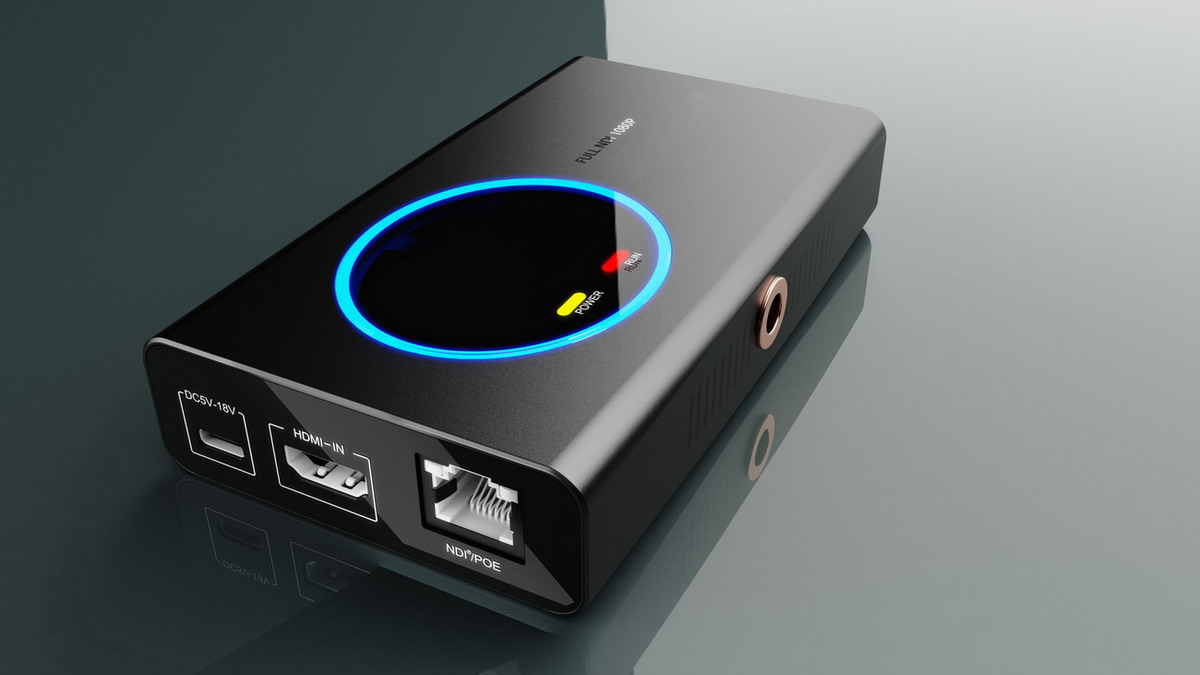

The N10 HDMI/NDI BiDirectional Converter is a bi-directional HDMI converter that supports HDMI input (as NDI encoder) and HDMI loop output (also as NDI decoder output). N10 is capable of processing NDI sources from any camera, software or device.
Designed for professionals who demand the highest quality and lowest latency, the N10 is the ultimate tool for connecting traditional HDMI devices with the power of NDI networks.

Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, N10 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.

Key Features:
The N10 functions as a two-way converter, which means it can take an HDMI input and convert it to an NDI output (NDI encoder functionality), and also take an NDI input and convert it to an HDMI output (NDI decoder functionality).

NDI Encoder Input:
As an NDI encoder, the N10 captures video and audio from an HDMI source and encodes it into an NDI stream. This allows the video to be transmitted over a network to other NDI-compatible devices.

HDMI Loop Output & NDI Decoder Output:
Provides a pass-through of the HDMI signal, which can be used for local monitoring or recording.
When acting as a decoder, the N10 can receive NDI streams from the network and convert them back into HDMI signals. This allows for the integration of NDI sources into a traditional HDMI-based workflow.

Power over Ethernet (PoE):
Powers the device through the Ethernet cable, simplifying the setup and reducing the need for separate power sources.

LCD Display with Tally:
Includes a large, easy-to-read LCD display that shows important information, including a tally light for on-air status.

PTZ Control:
Provides control over PTZ (Pan-Tilt-Zoom) cameras, allowing for dynamic camera operation within an NDI workflow.

Audio Line In/Out:
Features 3.5mm audio inputs and outputs for integrating with external audio sources or systems.

Low Latency:
One of the key benefits of NDI technology is its low latency, which is crucial for live production.

Ease of Use:
Designed to be user-friendly, making it easy for users to access the benefits of NDI. Easy to set up through a web management and require minimal configuration.

Positioned as a cost-effective solution for adopting NDI technology without breaking the budget.

Ideal for live streaming, video production, virtual sets, and any application requiring the conversion between HDMI and NDI.
The N10 NDI Converter appears to be a compact and powerful tool for modern video production, providing the flexibility to integrate with both traditional and network-based video infrastructures.

Model No. N10
Video Input 1*HDMI
Video Output 1*HDMI
Audio Ports 1*3.5mm Line I/O
Network Connections 1*RJ45 1000Mbps Ethernet port (with PoE)
Video resolution Encoding & Decoding: Up to 1080p60
NDI Codec Features Full NDI
Tally Yes
Power Supply PoE IEEE 802.3af PoE
PTZ Control Yes
Management WebUI – default IP:
Firmware Ethernet software upgrade
Power Consumption Max 6w
Operating Temperature -10~70℃
Storage Temperature -20~80℃
Dimension (L x W x H) 132mm*72mm*25 mm
Weight 220g
