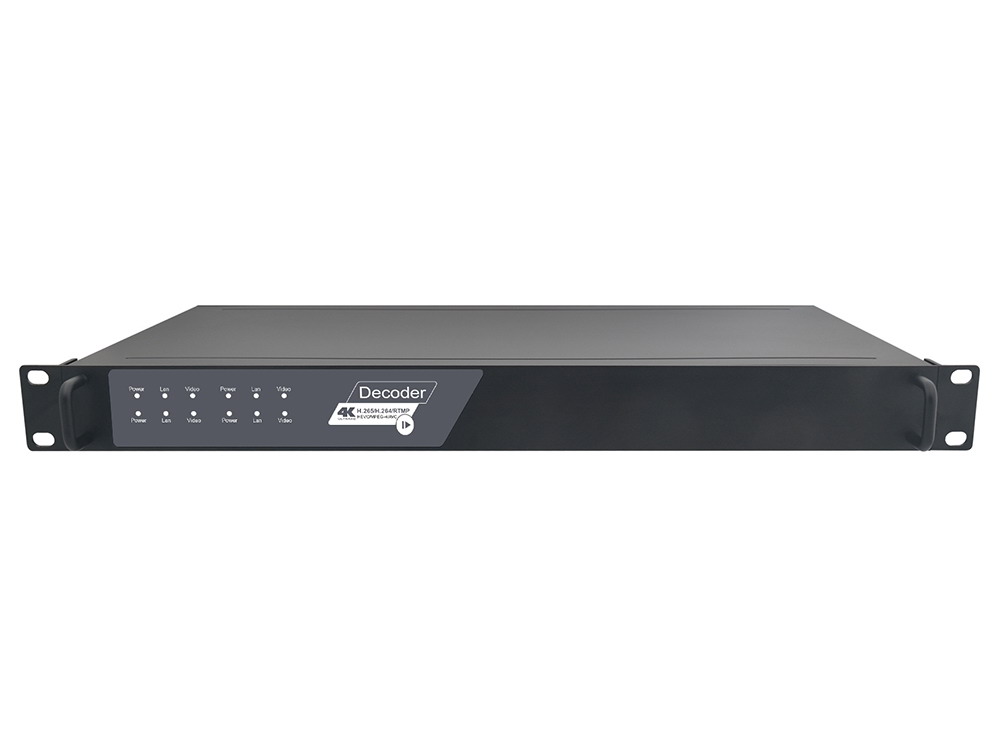

1U Rack-mounted H.265 4K HDMI VGA CVBS Video Decoder

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-NH200PDU-1U Rack-mounted H.265 4K HDMI VGA CVBS Video Decoder - a professional video & audio decoding product supports H.265/H.264 IP Stream. This 1U IP Video Decoder max support 4PCs decoding card inserted, each decoding card with HDMI, VGA, CVBS and L/R stereo audio output by decode the input SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) TS or NDI etc.
With high integration and cost-effective design, this device widely used in variety of field, such as Multimedia Distribution, Advertisement Display, Digital Signage, CCTV, Long Distance Video transmit (with our encoder), etc.


Product features

1. Embedded HiLinux System, stable and effective, 7 x 24h working time.

2. Friendly Web Control UI, default IP is 192.168.1.169.

3. Support SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) streaming decoding.

4. Support output resolution - 3840x2160@30fps, 1080P/1080I/720P@60FPS, etc.

5. Support Text and image insert as OSD output.

6. With English control panel & language customizable.

7. Support H.265/H.264 baseline /main /high profile decoding.

8. Support firmware upgrade.

9. Support remote control via router port forward.



Our Services

1. 1-Year Warranty.

2. Online, remote help.

3. Encoder Function customizes.

4. OEM & ODM welcomed.

Application

1. Long distance video transfer.

2. Internet TV (IPTV) HD capture system

3. Internet video conference front-end capture

4. Digital signage HD streaming server

5. Teaching broadcast

6. Network monitoring system platform front-end capture

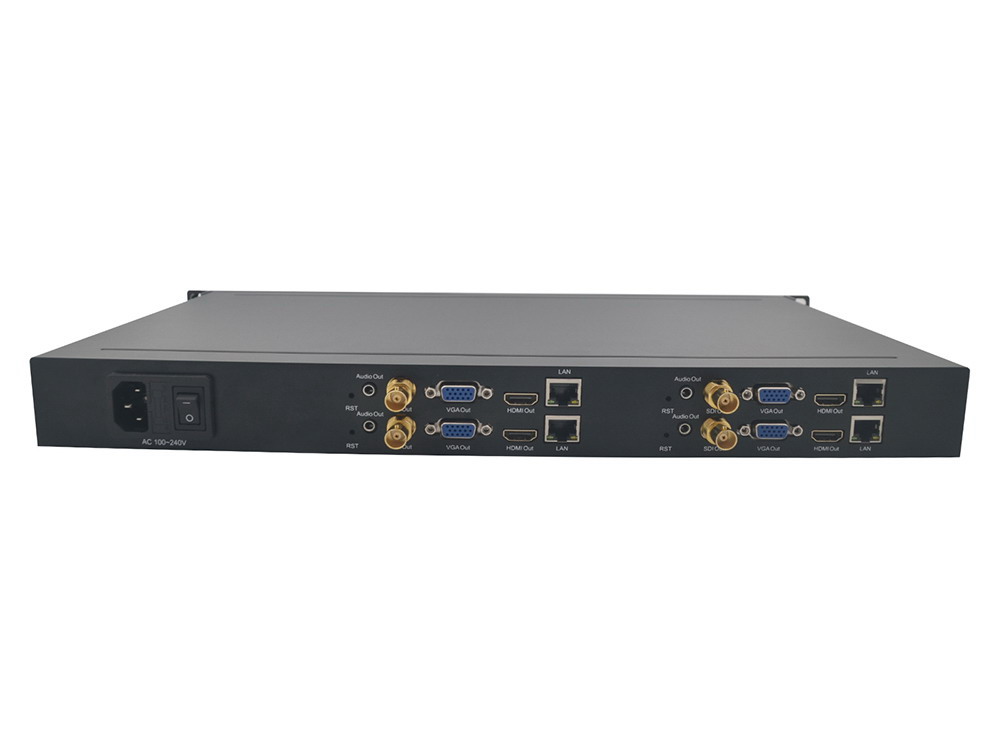

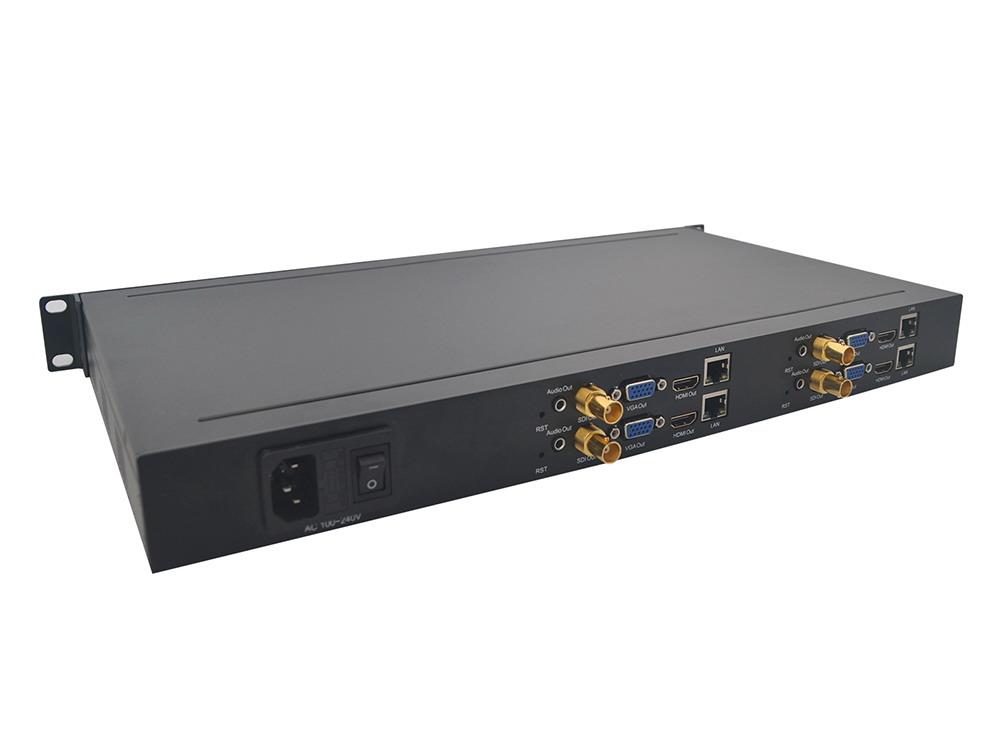

Interfaces
HDMIOutput 3840*2160P@30/ 1440P@30/ 1080P@60/ 1080I@60/ 1080P@50/ 1080I@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60 fps
VGA Output 1080P@60/ 1080I@60/ 1080P@50/ 1080I@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60fps
CVBS Output PAL 720*576/ 50i & NTSC 720*480/ 60i
Audio Output HDMI embed audio & External Analog audio
Ethernet 1000Mbps, RJ-45
WiFi Option  2.4G & 5.8G
Video Decoding
Video Format H.264/ AVC High/ Main/ Baseline Profile H.265/ HEVC main profile MJPEG/ JPEG baseline
Video Resolution Max support 3840×2160@30fps, 1080P@60fps, 720P
Video Bitrate 0.1~32Mbps
Video FPS 1-60 for 1080P and below, 4K@30fps
Streaming Protocols SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/ RTP (Unicast/ Multicast) ONVIF, NDI
AudioDecoding
Audio Format AAC/ AAC+/ AAC++/ MP3/ MP2/ AC3 G711
Sample Rates 8000/ 11250/ 22500/ 44100/ 48000Hz
Audio Channels L/ R Stereo
System
Control Method Web based management - IP 192.168.1.169
Language Chinese-English control interface
Firmware Ethernet software upgrade
Working environment
Operating temperature -10 to 70 deg C
Storage temperature -20 to 80 deg C
Relative Humidity 5% to 90% non-condensing
Miscellaneous
Dimension (L× W× H) 1U 483 (L) *250 (W) *44.5 (H) mm
Approx weight 4.5kgs
Power adapter AC input 100-240V 50/ 60Hz DC output 12V 8.5A
