BiDirectional 12G SDI to 4K HDMI Video Converter
- Description
- Specs
- Downloads
Overview

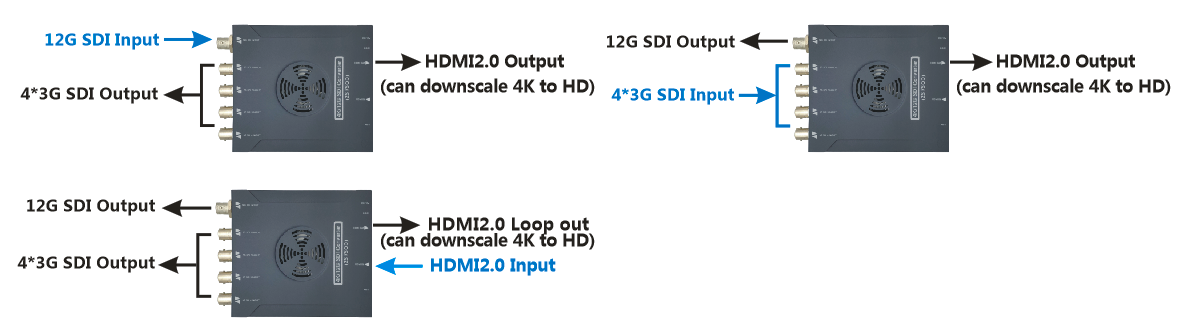

OPR-MHS900 is a 12G-SDI / quad-link 3G-SDI / 4K HDMI broadcast quality Multi-function converter, it can downscale the HDMI 4K to 1080P and monitoring on HDTV with built-in downscaler. The OPR-MHS900 widely used in various applications, 4K non-linear editing system, 4K studios, 4K broadcast systems, 4K broadcast vehicles, 4K demo systems and others.
Features
Support for 4:4:4/4:2:2/4:2:0
Support 8/10-bit workflows
Support YUV & RGB
Support HDMI
HDR signaling metadata pass-through and optional override
Embedded audio support 24-bit
Monitor the device status via NMS
Three year warranty
OEM & ODM welcomed.
SDI
1x12G SDI BNC, 4x3G SDI BNC
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/ B, SMPTE ST-2081, ITU-R BT.656, ITU-R BT.601
1xHDMI2.0a Input & 1xHDMI2.0a Output
SDI & HDMI Support
UHD - 3840x2160p@60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98
HD - 720p@50/ 59.94/ 60,1080i50,1080i59.94,1080i60,1080p@23.98/ 24/ 25/ 29.97/ 30/ 50/ 59.94/ 60
Audio
embedded audio, 24-bit
Size (w x d x h) & Weight
5" x 4" x 1.15" (127 x 101.6 x 30 mm) 1.54lb (0.7 kg)
Power
DC12V 3A
AC Adapter: 100-240VAC, 50/ 60 Hz, universal input
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing
