OPR-DT9 4K H.265 IP Transcoder

H.264 / H.265 IP to IP Transcoder and Transmitter - is a powerful, hardware-based solution designed for real-time, high-efficiency IP Video Transcoding across multiple channels and formats. Built to meet the demands of modern broadcasting, IPTV, and OTT distribution, this device enables seamless conversion of incoming IP video streams into optimized H.264 or H.265 outputs with unparalleled flexibility and stability.

Key Features

1. Multi-Format Support

• IP Video Transcoder from H.264 to H.265, H.265 to H.264 - HEVC  & AVC Transcoder.
• Adjust within the same codec to optimize bandwidth and quality.

2. Flexible Bitrate and Resolution Control - Transcoding to different resolution and bitrate.

• Easily scale 4K, 1080p, 720p, or lower resolutions
• Match your target platform's requirements

3. High-Density Processing

• Supports Multi-Channel IP video transcoding, 1 - 9 channels video transcoding and decoding with HDMI output
• 1 channel 4096x2160@60
  2 channels 4096x2160@30
  4 channels 1920x1200/1080@60fps
  8 channels 1920x1200/1080@30fps
  9 channels 1920x1200/1080@25fps


• Ideal for large-scale media distribution systems

4. Low Latency and High Image Fidelity

• Advanced encoding algorithms ensure minimal delay
• Superior picture quality

5. Robust Protocol Compatibility

• Works with all mainstream IP transmission formats including:
• UDP, HTTP, RTSP, RTMP, HLS, SRT, and more

Efficiently manages multiple IP transcoding video streams simultaneously, making it ideal for large-scale operations such as surveillance systems or broadcasting.

IP Video Transcoder Setup

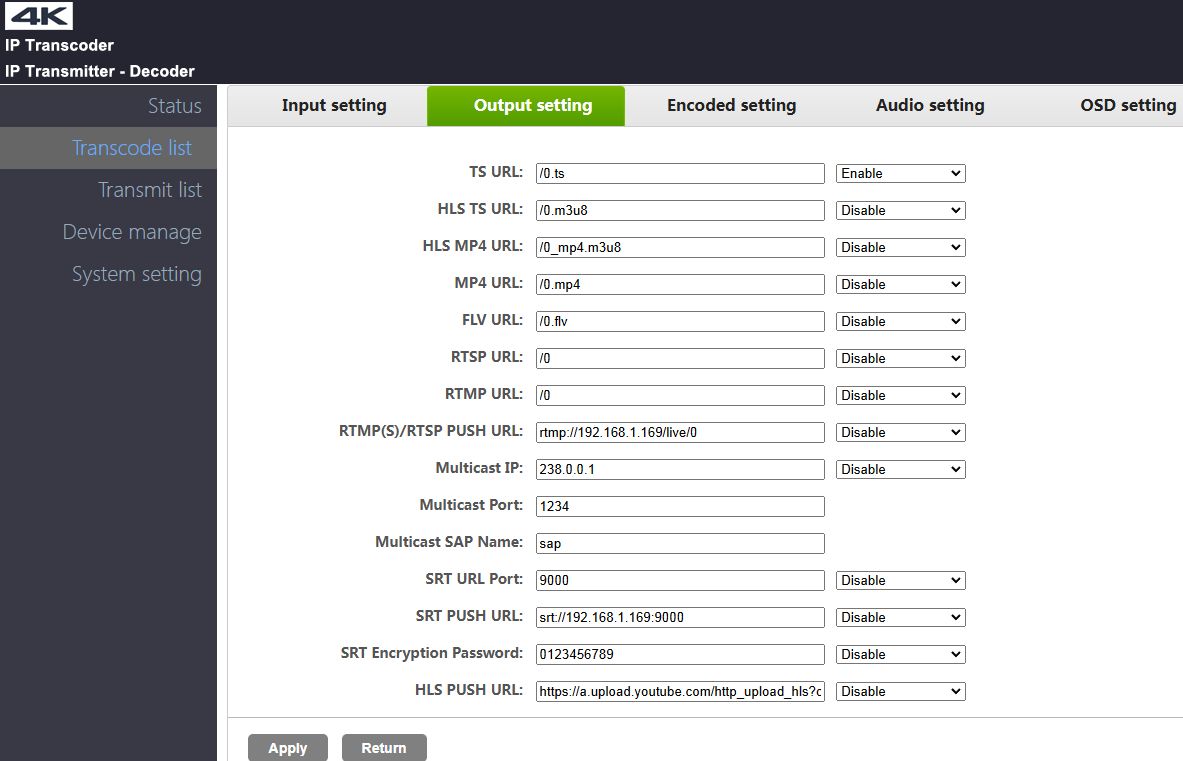

Set up for 9 channels:

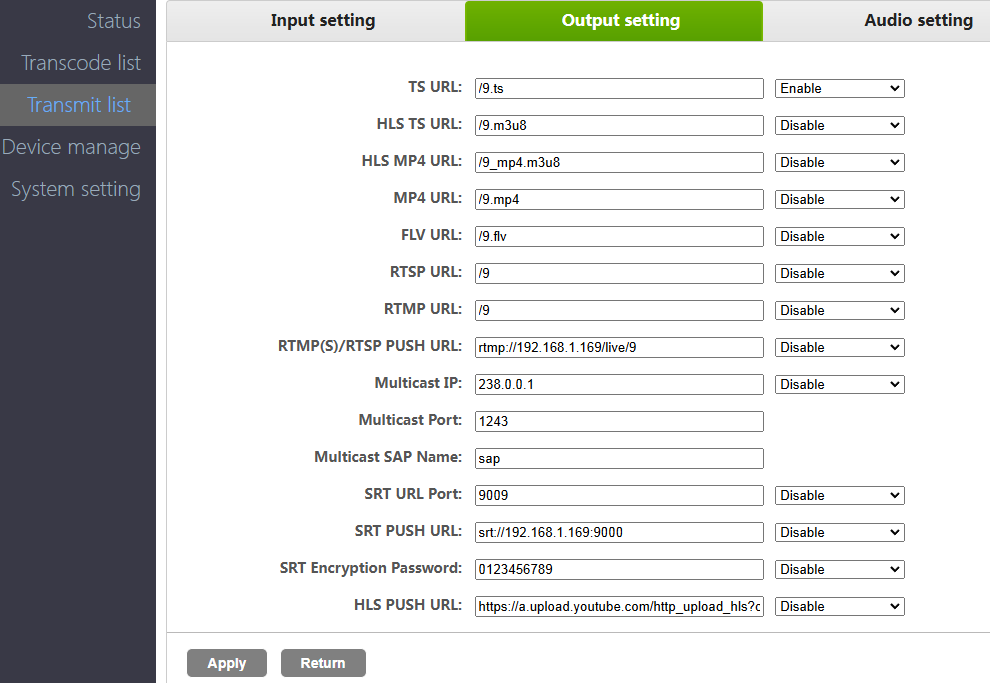

36 channels Transmit, IP streaming forwarding:

AVC/HEVC IP Transcoder

• Format Conversion Versatility - Offers the adaptability to convert video streams into a wide range of H.264 orH.265 formats.

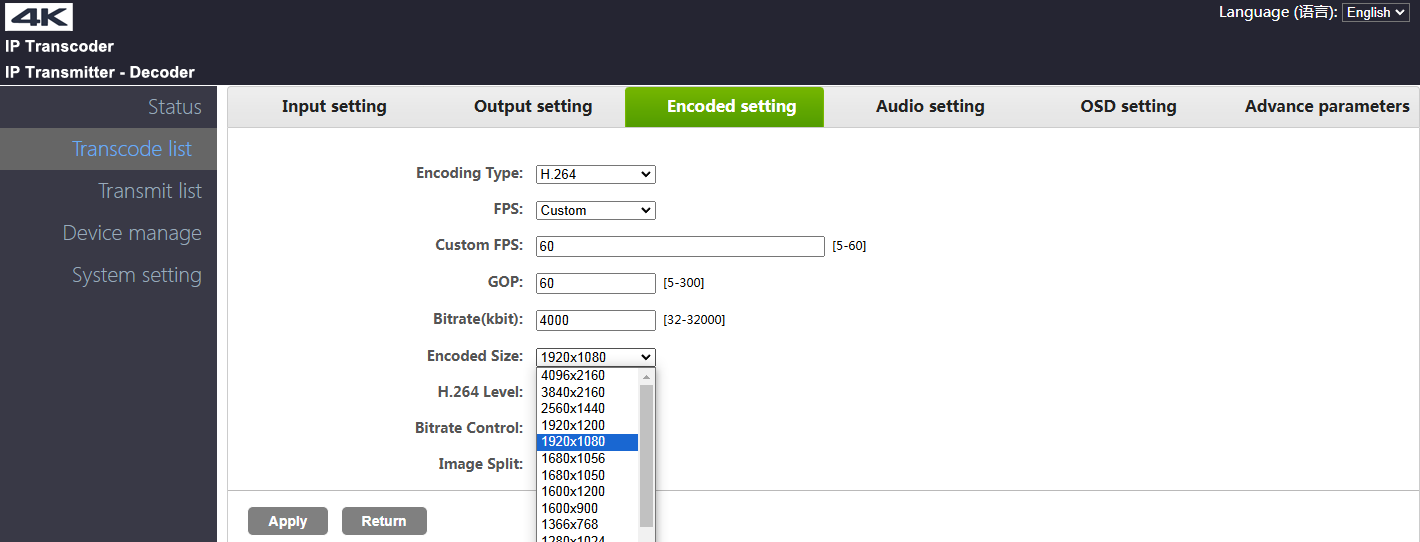

• Bitrate and Resolution Customization - Tailor the bitrate and resolution of the output streams
• Re-Encoding for Enhanced Quality - Guarantees high-quality output streams

Product Features

• Adopts professional encoding chip, embedded Linux System, high stability and efficiency
• Friendly Web Control UI, default IP is 192.168.1.169
• Support input & output HTTP/SRT/HLS/FLV/RTSP/RTMP(S)/UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF
• Support Graphics/Text/Scrolling text/Time OSD
• Support 2 External Analog audio input
• Support firmware upgrade
• Support remote control via router port forward
• WiFi version for option

This advanced IP Transcoder is indispensable for applications where the transmission and display of high-quality video content are essential, such as in the modern streaming, broadcasting, and surveillance industries.

Use Cases

• IPTV and OTT content delivery
• Live streaming platform optimization
• Video format standardization for recording and storage
• Network bandwidth adaptation for remote viewing

OPR-DT9 H.265 Transcoder and Transmitter Specification.pdf

OPR-DT9 4K H.265 Transcoder and Transmitter Guide.pdf
