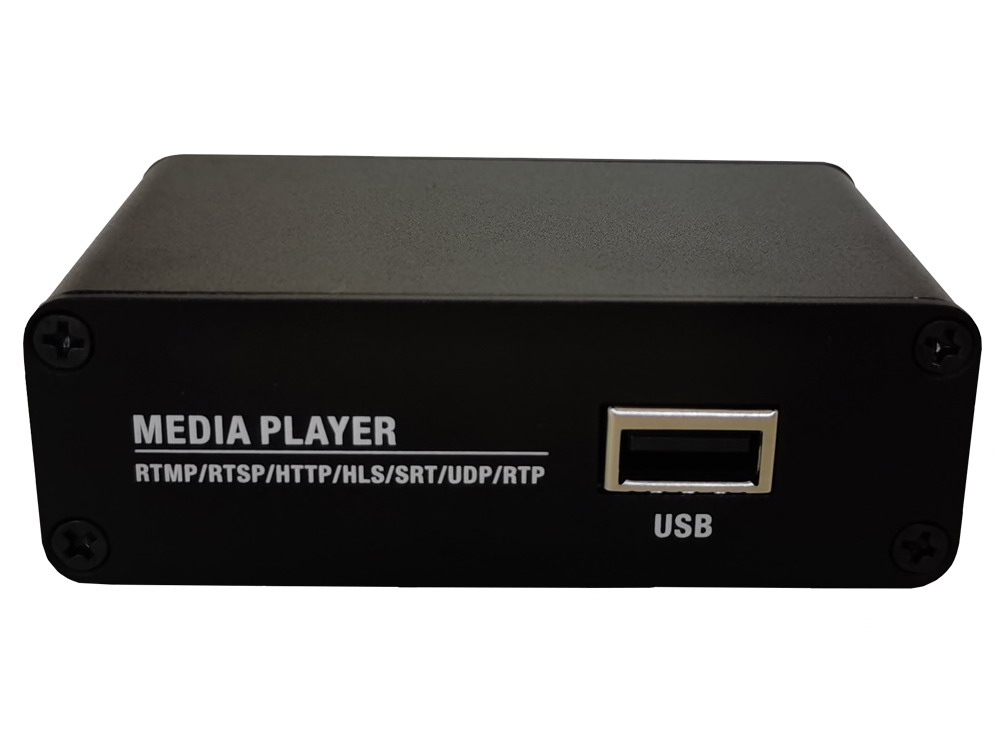

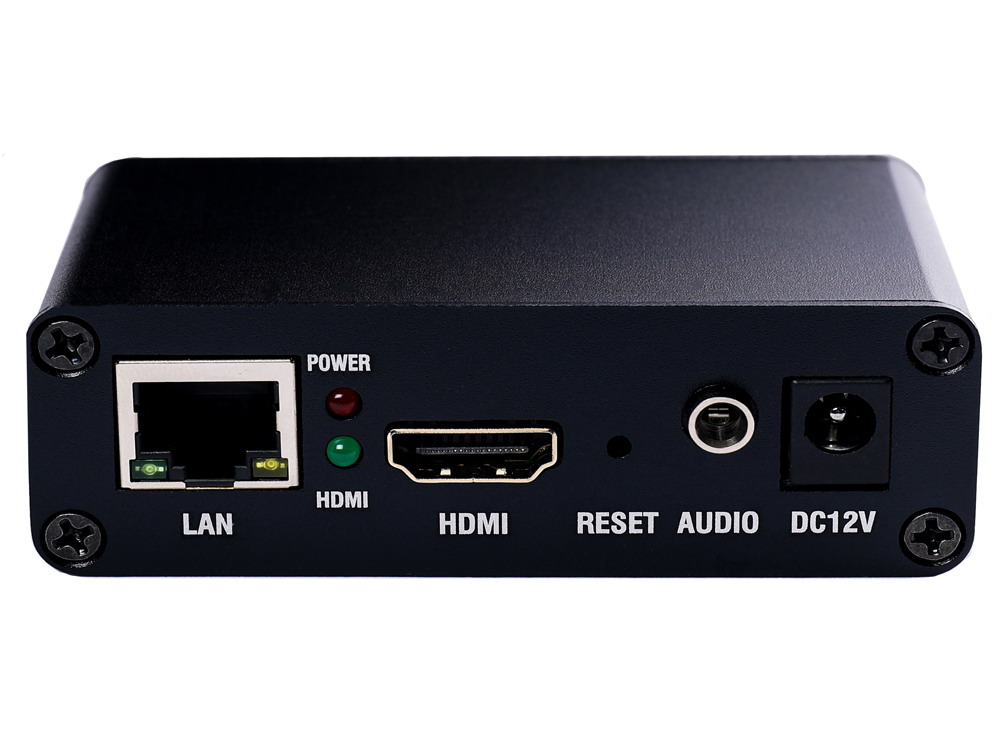

MP10 H.265 HDMI Media Player

Get more information, message us now!
  • Description
  • Specs
  • Downloads

H.265 UVC HDMI Media Player – complete with video encoder and decoder functions, is a versatile professional audio and video decoding device. It is capable of supporting H.265/H.264 IP Stream inputs, playing video files from a USB drive, and outputting them to HDMI. In addition, it can also encode videos from the USB drive into various streaming formats, such as RTMP/RTMPS, HTTP, RTSP, SRT, UDP, RTP, etc. This multi-functional device provides a comprehensive solution for your audio and video needs.

With high integration and cost-effective design, this device widely used in variety of fields, such as Multimedia Distribution, Advertisement Display, Digital Signage Player, CCTV, Long Distance Video transmit (with our encoder), etc.

Product features
1.    Embedded Linux System, stable and effective, 7 x 24h working time.
2.    Friendly Web Control UI, default IP is 192.168.1.169 (as Decoder), 192.168.1.168 (as Encoder).
3.    Support output resolution - 1080P/1080I/720P@60FPS, etc.
4.    USB Input: play videos from a USB drive.
5.    Support Text and image insert as OSD output.
6.    With English control panel & language customizable.
7.    Support H.265/H.264 baseline /main /high profile decoding.
8.    Support firmware upgrade.
9.    Support remote control via router port forward.

Application
1.    Long distance video transfer.
2.    Internet TV (IPTV) HD capture system
3.    Internet video conference front-end capture
4.    Digital signage Player, HD streaming server
5.    Teaching broadcast
6.    Network monitoring system platform front-end capture

Input TS Protocols SRT / HTTP(S) / FLV / RTSP / RTMP(S) / UDP/ RTP (Unicast/ Multicast), ONVIF, etc.
Private HTTP PTE
U-disk (FAT) H264 video files, max supports 1080p@60
Video Decoding Video type H.265 main profile
H.264 baseline/ main/ high profile L4.2
MJPEG/ JPEG baseline
FPS 1-60fps for 1080P and below, 4K@30fps
bitrate (kbps) 32-32000
Resolution Max 3840*2160@30fps /  1080P@60fps
Audio Decoding Type G711A/ G711U/ AAC/ AAC+/ AAC++/ AC3/ MP2/ MP3
Audio Channels L/ R Stereo
Sample rates 8000/ 11250/ 22500/ 44100/ 48000 Hz
Video output HDMI 1080P@60/ 1080P@50/ 1080P30/ 1080P25/ 720P60/ 720P50/ 576P50/ 480P60
CSC Brightness, Contrast, Hue, Saturation
Audio output HDMI 48KHz L /  R
3.5MM L /  R
Others Ethernet Ports 1000 Mbit/ s full-duplex
admin page HTTP WEB
Power 12V 1A <5W
Operating temperature -20℃ + 80℃
Relative Humidity 5% to 90% non-condensing
Dimension (L× W× H) 85 X 55 X 30mm
Weight 130g
