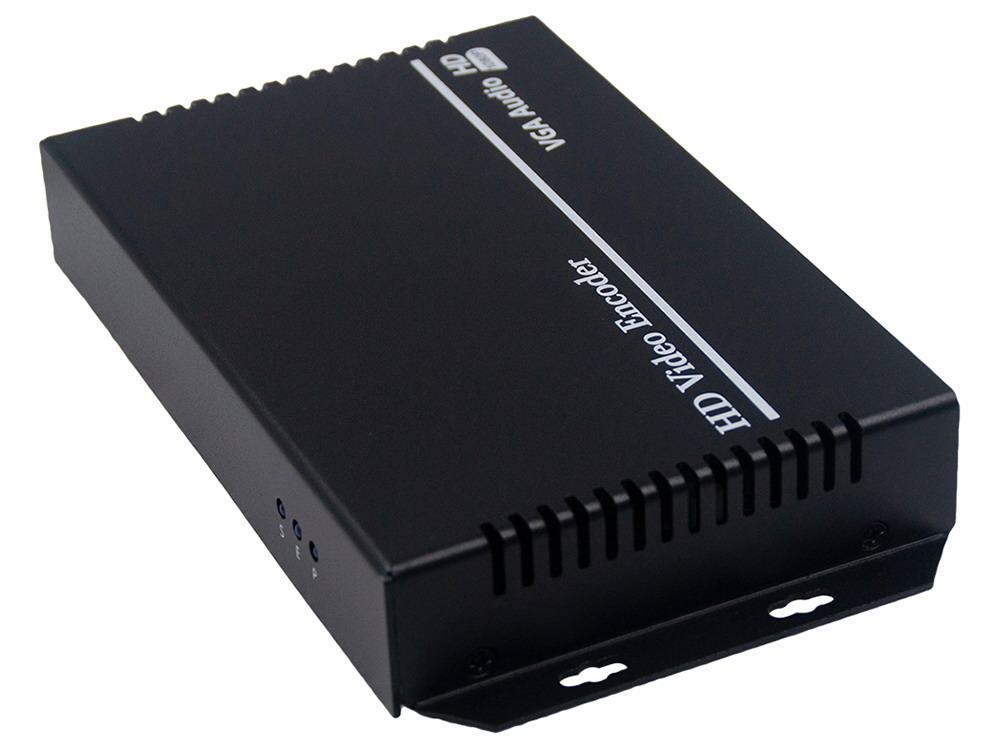

OPR-NH100PV H.265 VGA IP Streaming Encoder
- Description
- Specs
- Downloads
OPR-NH100PV H.265 VGA IP Streaming Encoder, H265 VGA Encoder - VGA and analog audio input, support max resolution at 1920x1200@60fps, and output video stream up to 1920x1200@60fps, 1080P@60fps, etc. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
Product features

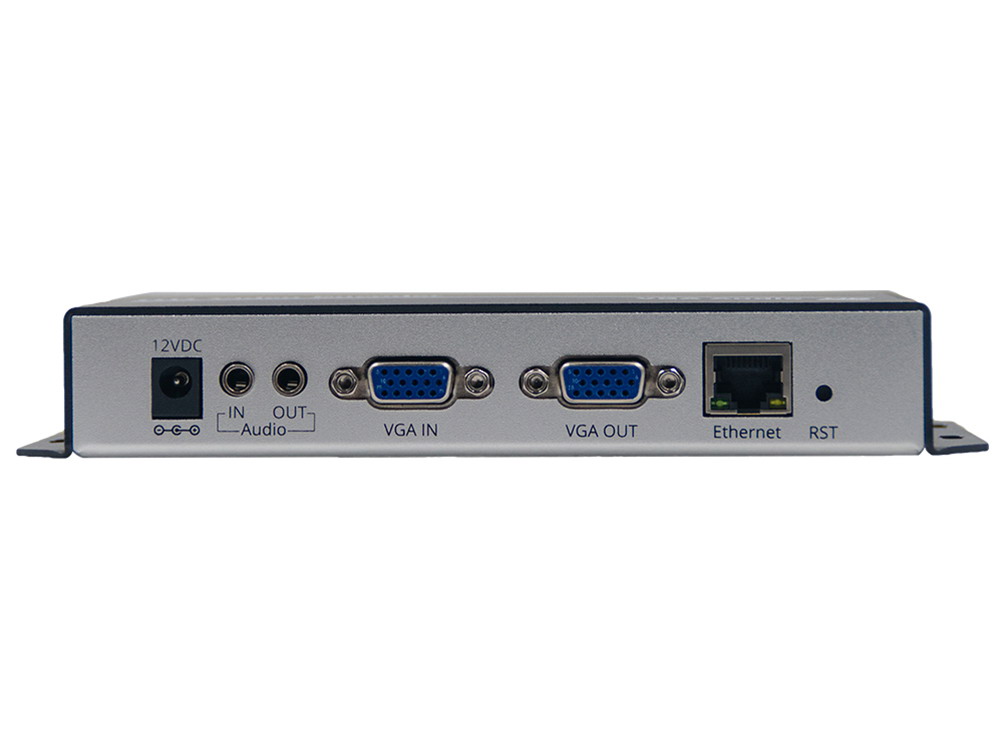

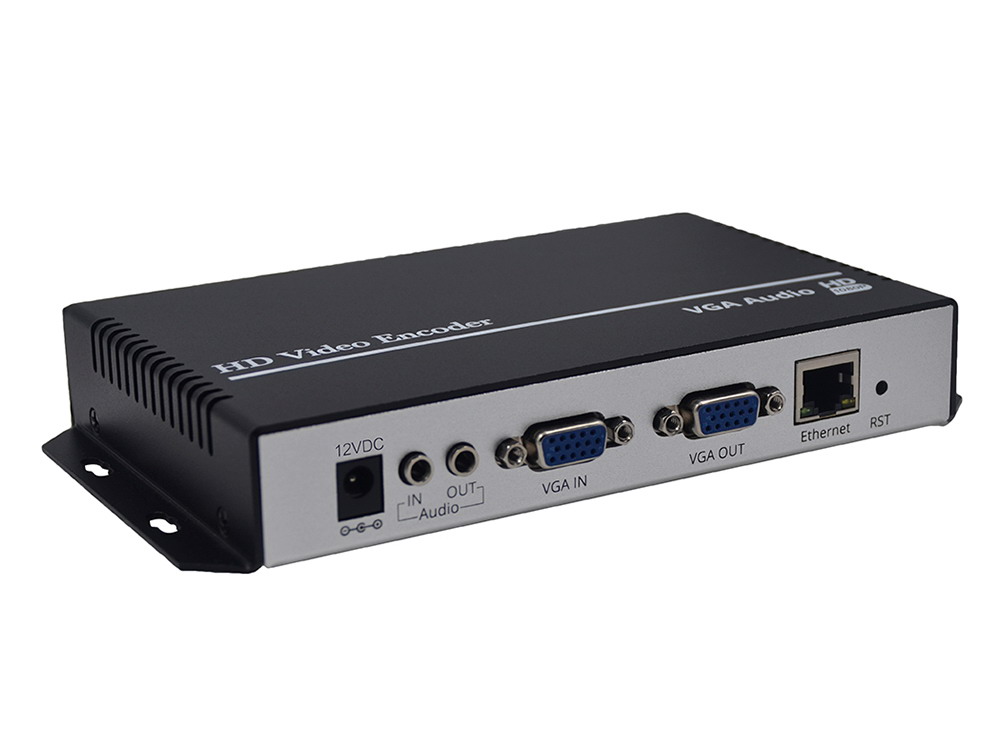

1. VGA Encoder - With 2 VGA ports, 1 VGA input, 1 VGA loopback (loopback available even power supply cut off).
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolutions-1920x1200, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
7. Support Text and image insert as Stream Logo for Main stream & Sub stream.
8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
9. Output Stream bitrate adjustable.
10. Support Audio digital gain.
11. Support External Analog audio input.
12. Support firmware upgrade.
13. Support remote control via router port forward.
14. Wifi version for option.
15. 3U chassis available, max supports 16Pcs Encoder installed.
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
VGA Encoder Parameters
Interfaces | |
Video Input | 1 VGA input, 1 VGA loopback Max support 1920x1200, 1920x1080P@60Hz |
Audio Input | 3.5mm L/R Analog Audio line in & Output |
Ethernet | 1Gbps, RJ-45 |
WiFi | Option 2.4G & 5.8G |
Video Encoding | |
Video Format |
H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
Video Resolution | Max support 1920x1200, 1920x1080P@60FPS |
Video Bitrate | 0.1~32Mbps |
Video FPS | 5-60FPS |
Bitrate Control | VBR/CBR |
Streaming Protocols | HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
Audio Encoding | |
Audio Format | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 G711 |
Sample Rates | 44.1kHz/48kHz |
Bitrate | 12~640kbps |
System | |
Control Method | Web based management - IP 192.168.1.168 |
Language | Chinese-English control interface |
Firmware | Ethernet software upgrade |
Working environment | |
Operating temperature | -10 to 70 deg C |
Storage temperature | -20 to 80 deg C |
Relative Humidity | 5% to 90% non-condensing |
Miscellaneous | |
Dimension (L × W × H) | 185*110*30mm |
Approx weight | 300g |
Power adapter | AC input 100-240V 50/60Hz DC output 12V 1A |
