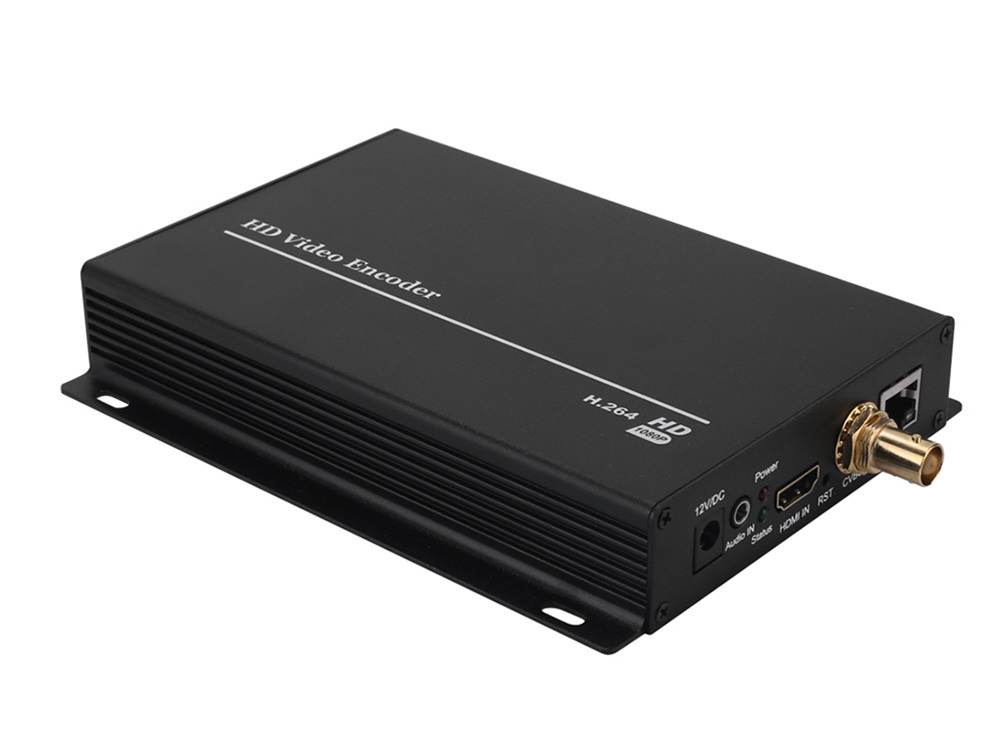

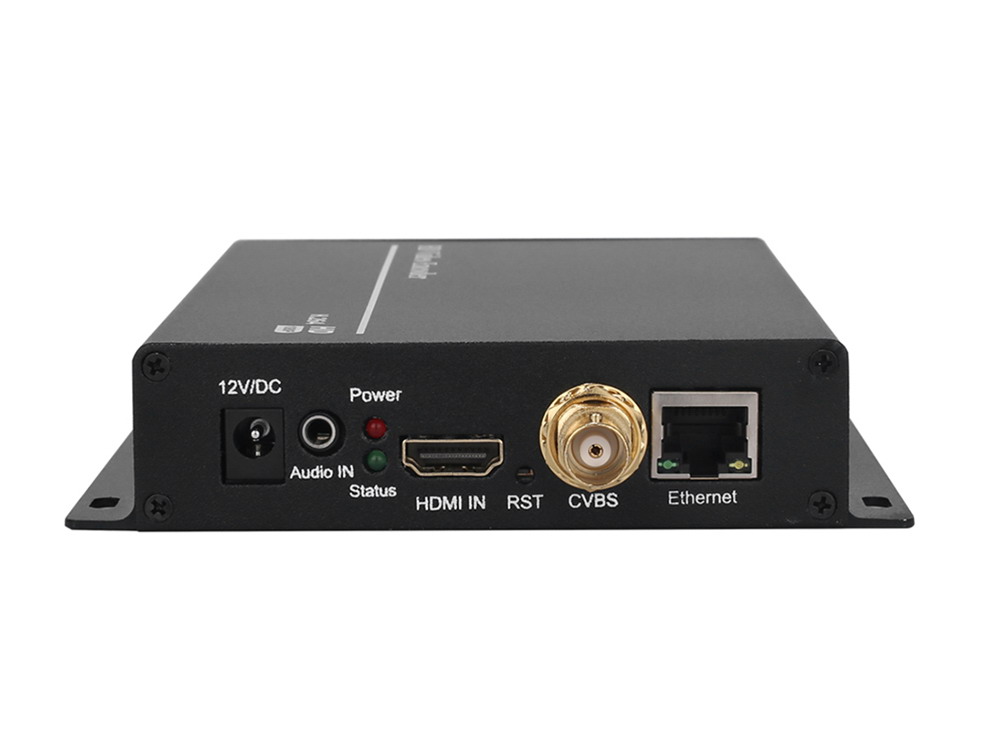

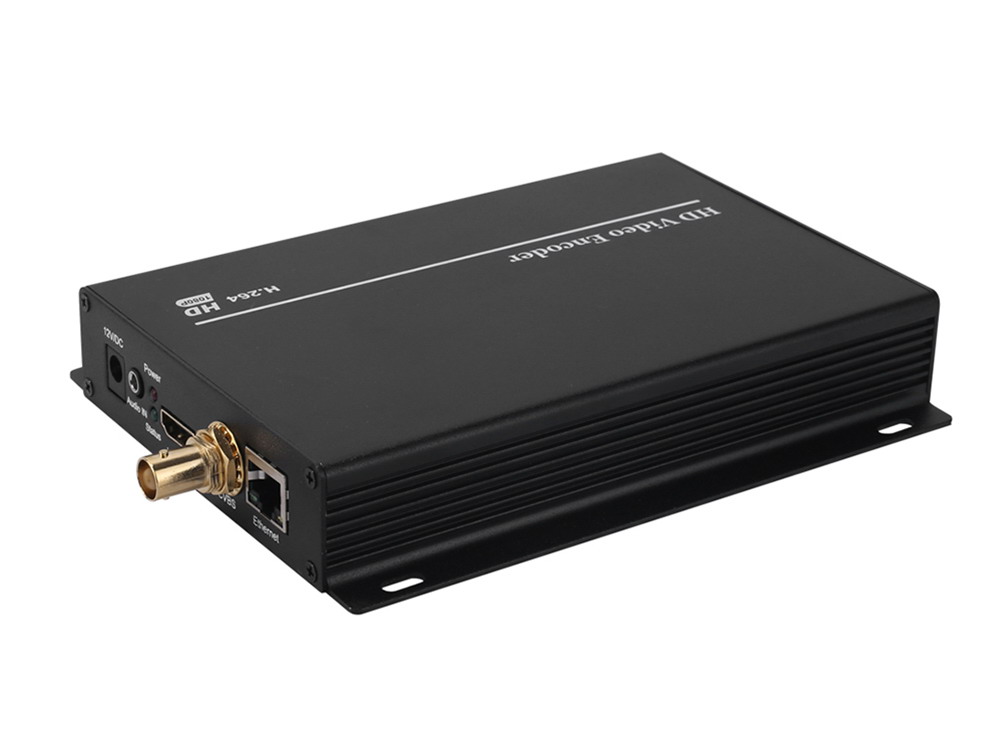

OPR-NH100CH h.264 HDMI CVBS IP Streaming Encoder
- Description
- Specs
- Downloads
OPR-NH100CH H.264 HDMI CVBS IP Streaming Encoder - CVBS Encoder, Analog Video Encoder, that converts analog video signals into digital data - CVBS encoding (both PAL and NTSC), also supports input HDMI max resolution at 1920x1080@60fps, and output stream resolution to 1080P@60fps, etc. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols, NVR ONVIF and online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features
1. Support HDMI & CVBS (PAL & NTSC) input and encoding simultaneously.
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolutions - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
7. Support Text and image insert as Stream Logo for Main stream & Sub stream.
8. Output Stream bitrate adjustable.
9. Support External Analog audio input.
10. Support Audio digital gain.
11. Support firmware upgrade.
12. Support remote control via router port forward.
13. WiFi version for option.
14. 3U chassis available, max supports 16Pcs single Encoder installed.
CVBS Encoder, Analog Video Encoder, Composite video signal encoder, BNC interface video encoder, CVBS to IP video encoder, CVBS+HDMI dual input video encoder

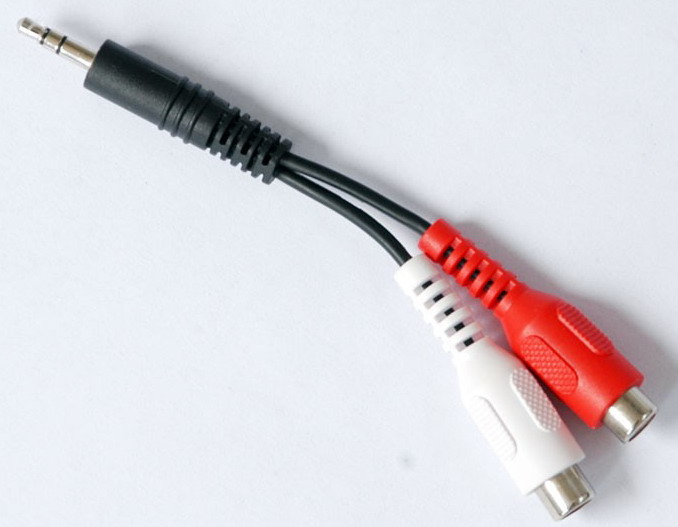

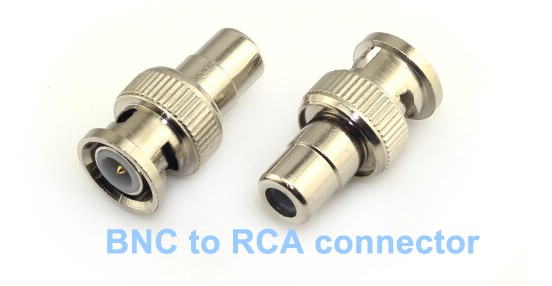

BNC to RCA video connector & 3.5mm audio to RCA audio cable (Option)
Analog Security Cameras to a NVR
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
Parameters
| Interfaces - CVBS Encoder, Analog Video Encoder, Composite video signal encoder, BNC interface video encoder | |
| Video Input | HDMI input, Max support 1920x1080P@60Hz, BNC (CVBS) PAL / NTSC |
| Audio Input | HDMI embed audio, Analog audio input |
| Ethernet | RJ-45 |
| WiFi | Option 2.4G & 5.8G |
| Video Encoding | |
| Video Format | H.264/AVC High/Main/Baseline Profile MJPEG/JPEG baseline |
| Video Resolution | Max support 1920x1080P@60FPS |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/CBR |
| Streaming Protocols | HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
| Audio Encoding | |
| Audio Format | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 G711 |
| Sample Rates | 44.1kHz/48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L × W × H) | 170*130*30mm |
| Approx weight | 300g |
| Power adapter | AC input 100-240V 50/60Hz DC output 12V 1A |
