OPR-NH100PH H.265 H.265 HDMI IP Streaming Encoder with Loop Output
- Description
- Specs
- Downloads

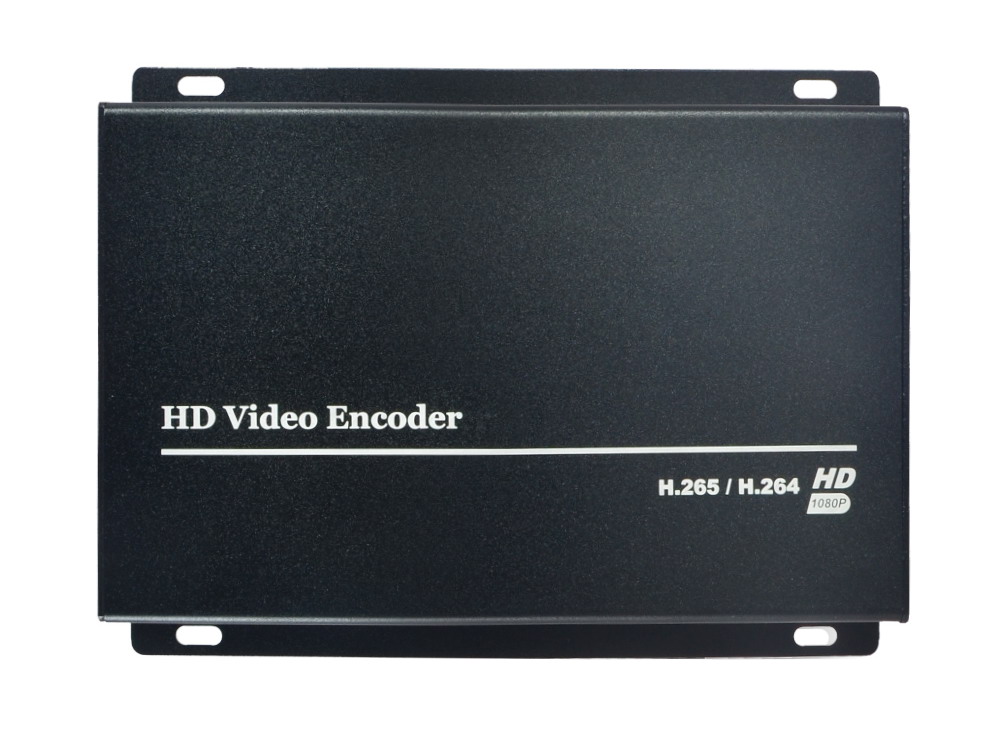

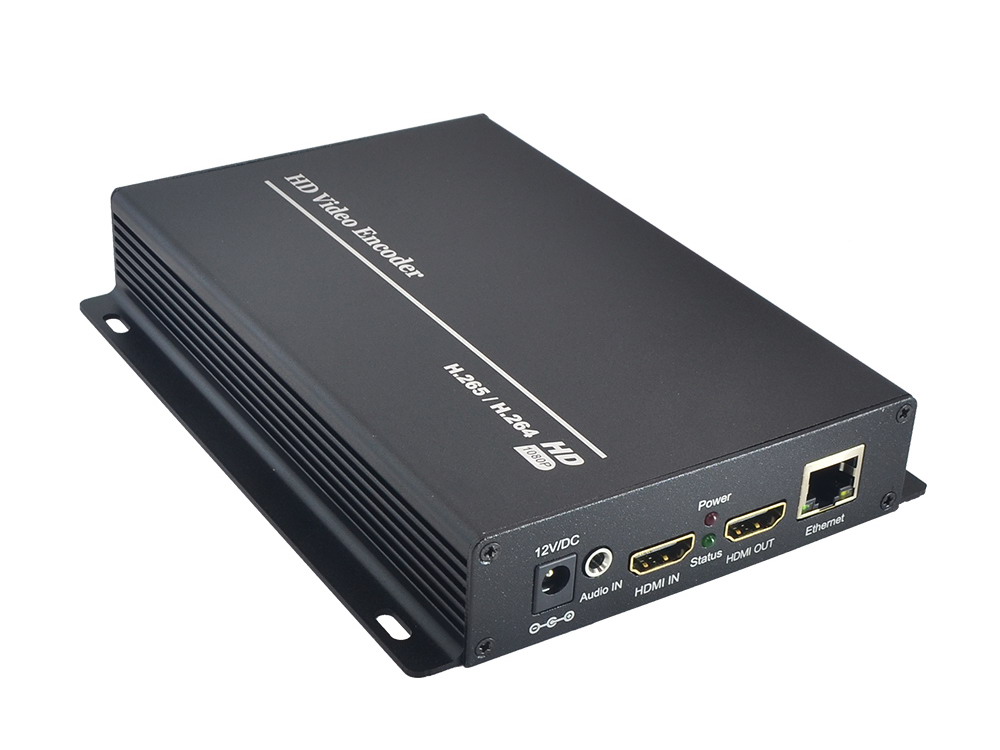

OPR-NH100PH H.265 HDMI IP Streaming Encoder with Loop Output - It is a HD audio & video encoding device with powerful functionality, which supports input HDMI max resolution at 1920x1080@60fps, and output stream resolution can up to 1080P@60fps. This Encoder works with HTTP / SRT / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (UNICAST/MULTICAST) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Online demo for admin pannel, https://www.oupree.com/demo/
Product features

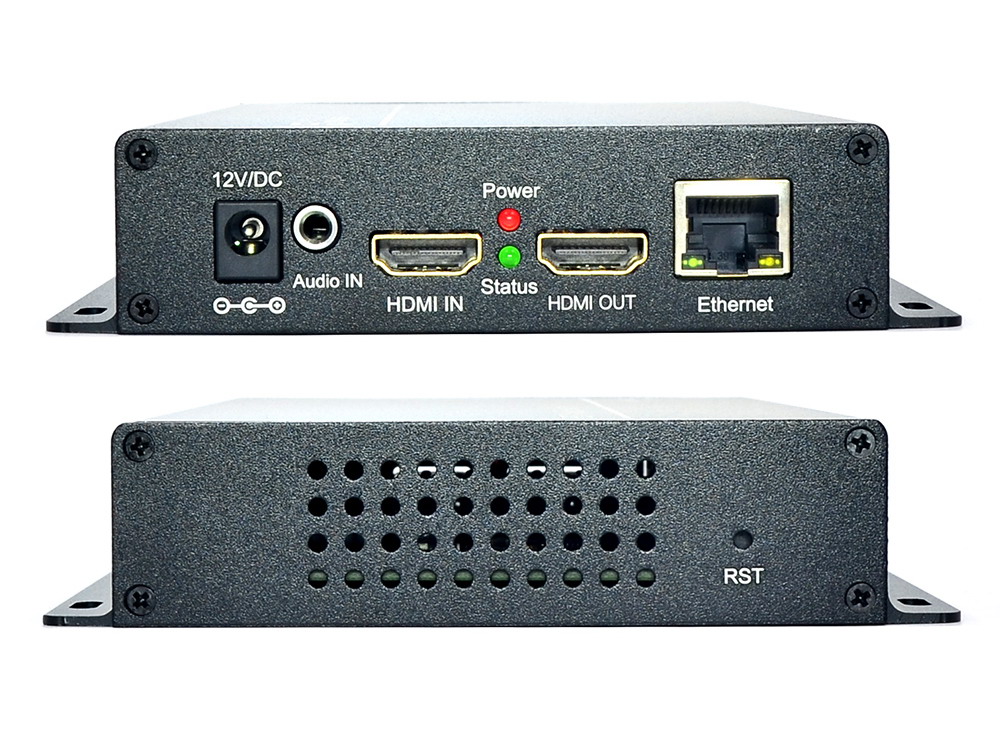

1. With 2 HDMI ports, 1 HDMI for input, 1 HDMI loopback.
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support HTTP / SRT / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolution - 1920x1200, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc.
7. Support Text and image insert as Stream Logo for Main stream & Sub stream.
8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
9. Output Stream bitrate adjustable.
10. Support Audio digital gain.
11. Support External Analog audio input.
12. Support firmware upgrade.
13. Support remote control via router port forward.
14. Wifi version for option.
15. 3U chassis available, max supports 16Pcs Encoder installed.
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
| Interfaces | |
| Video Input | 1 HDMI input, 1 HDMI loopback Max support 1920x1080P@60Hz |
| Audio Input | 3.5mm L/ R Analog Audio line in |
| Ethernet | 1Gbps, RJ-45 |
| WiFi | Option 2.4G & 5.8G |
| Video Encoding | |
| Video Format | H.264/ 265 High/ Main Profile |
| Video Resolution | Max support 1920x1080P@60FPS |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/ CBR |
| Streaming Protocols | HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/ RTP (Unicast/ Multicast) ONVIF |
| Audio Encoding | |
| Audio Format | AAC/ AAC+/ AAC++/ MP3/ MP2/ AC3 G711 |
| Sample Rates | 44.1kHz/ 48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L × W × H) | 170*130*30mm |
| Approx weight | 300g |
| Power adapter | AC input 100-240V 50/ 60Hz DC output 12V 1A |
