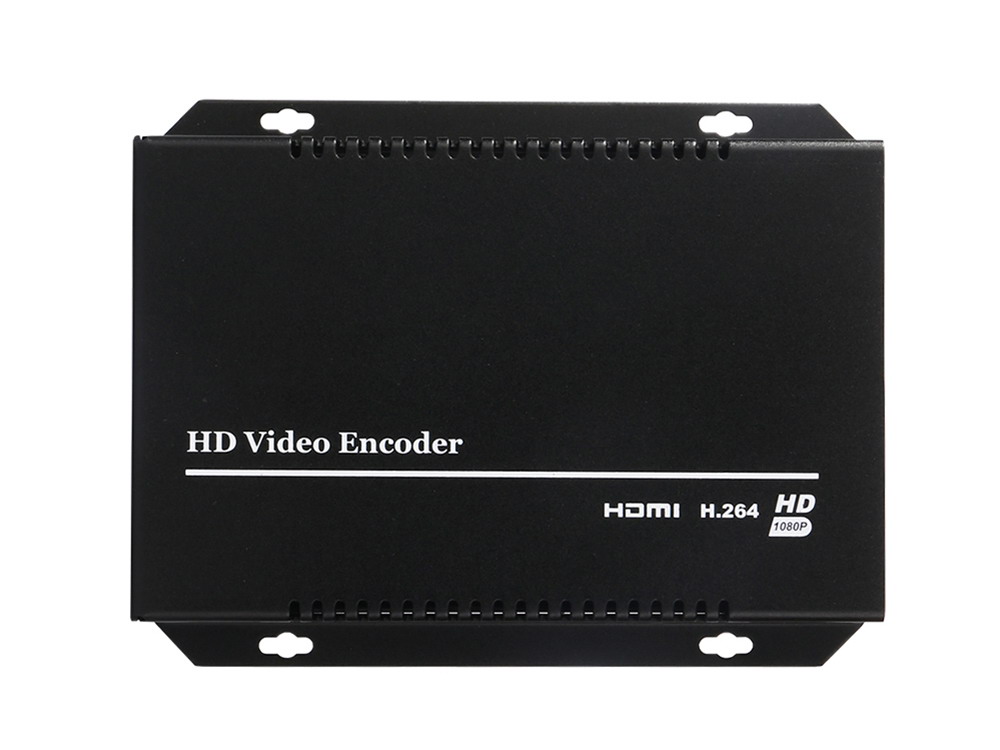

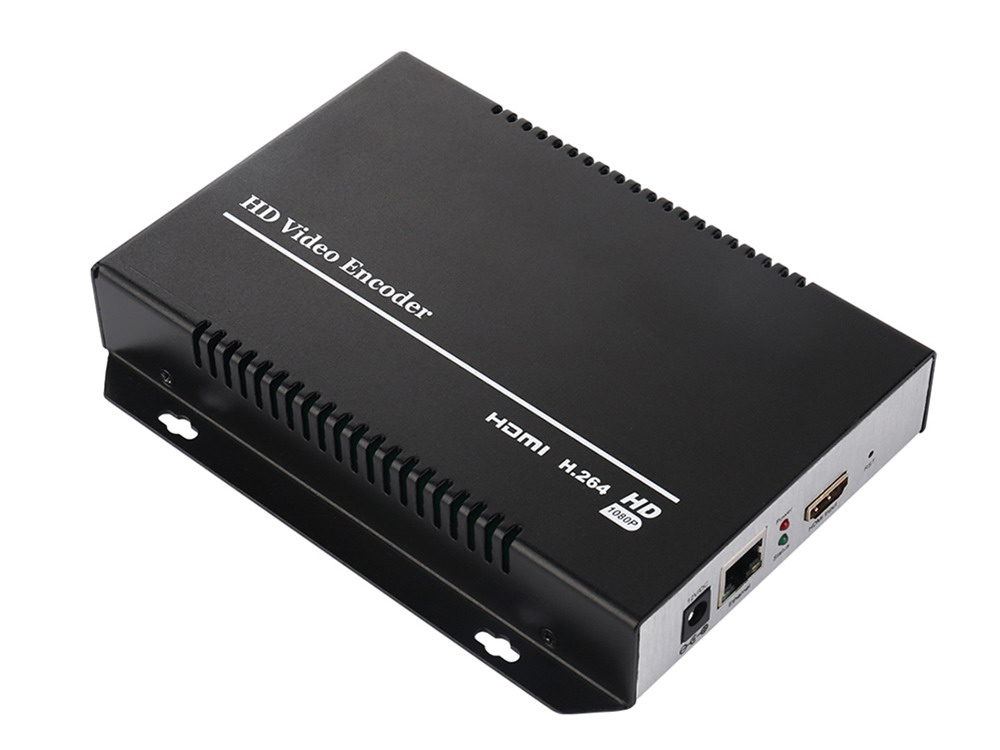

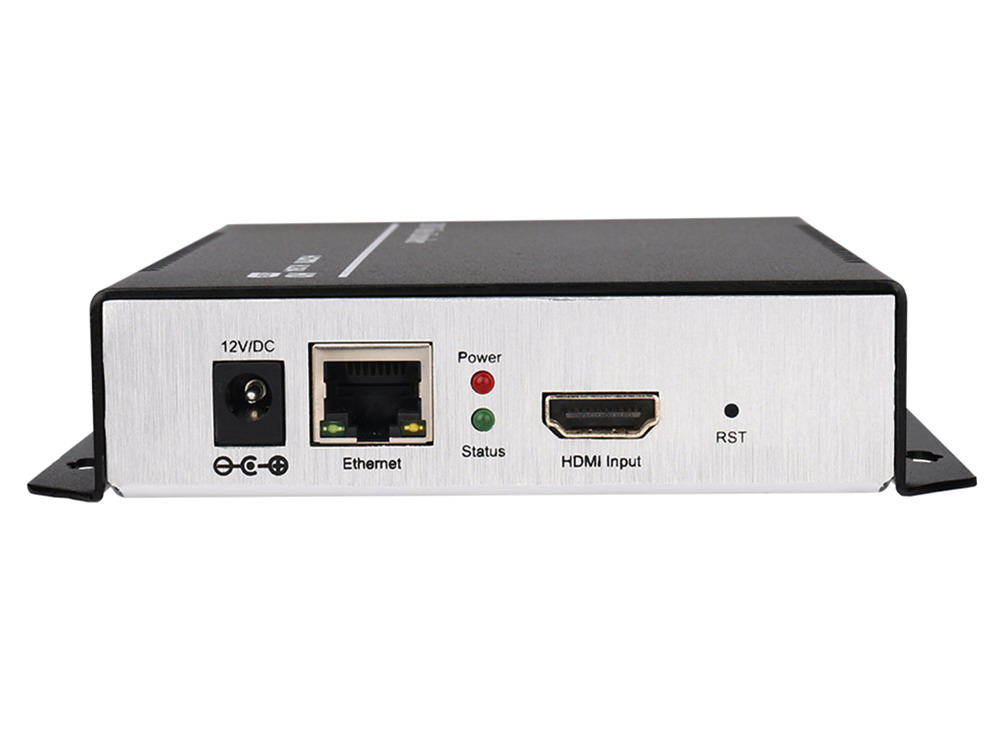

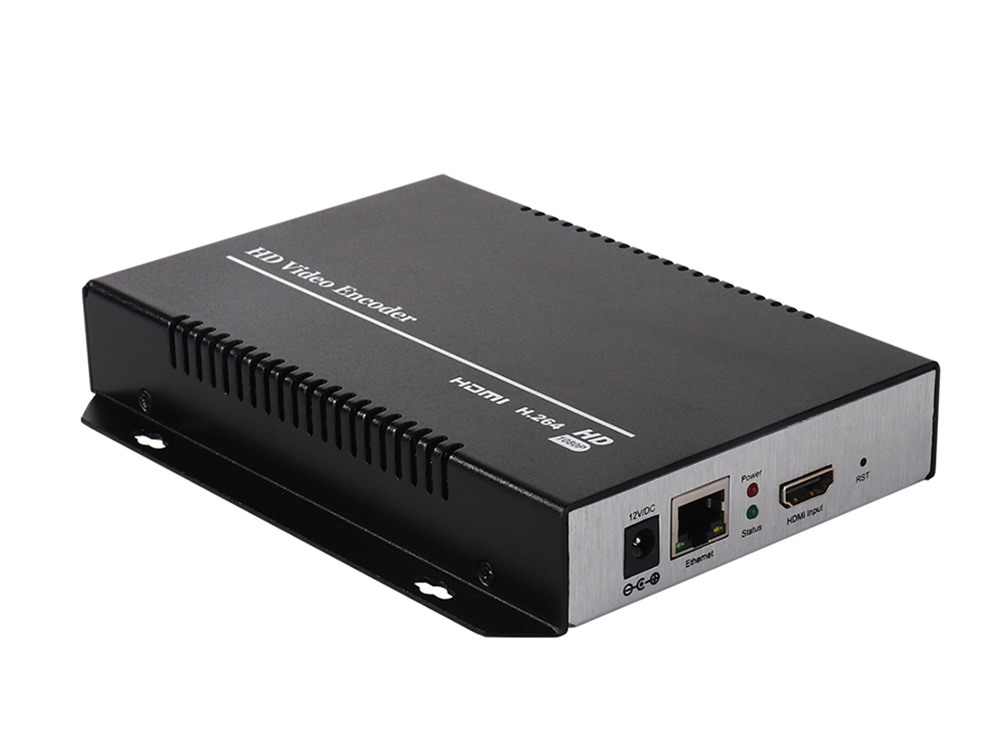

OPR-NH100N H.264 HDMI IP Streaming Encoder

OPR-NH100N H.264 HDMI IP Streaming Encoder - It is a HD audio & video encoding device with powerful functionality, which supports input HDMI max resolution at 1920x1080@60fps, and output stream resolution to 1080P@60fps, etc. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.

Product features

1. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.

2. Friendly Web Control UI, default IP is 192.168.1.168.

3. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.

4. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.

5. Main Stream Support Preset Resolution (provide custom resolutions) - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc.

6. Support Text and image insert as Stream Logo for Main stream & Sub stream.

7. Automatic detect the input HDMI, output stream will show no signals when HDMI signals interrupted.

8. Support Audio digital gain.

9. Support firmware upgrade.

10. Support remote control via router port forward.

11. WiFi version for option.

12. 3U chassis available, max supports 16Pcs Encoder installed.

Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.

Application
1. IPTV (Wowza, Xtream Codes Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference
