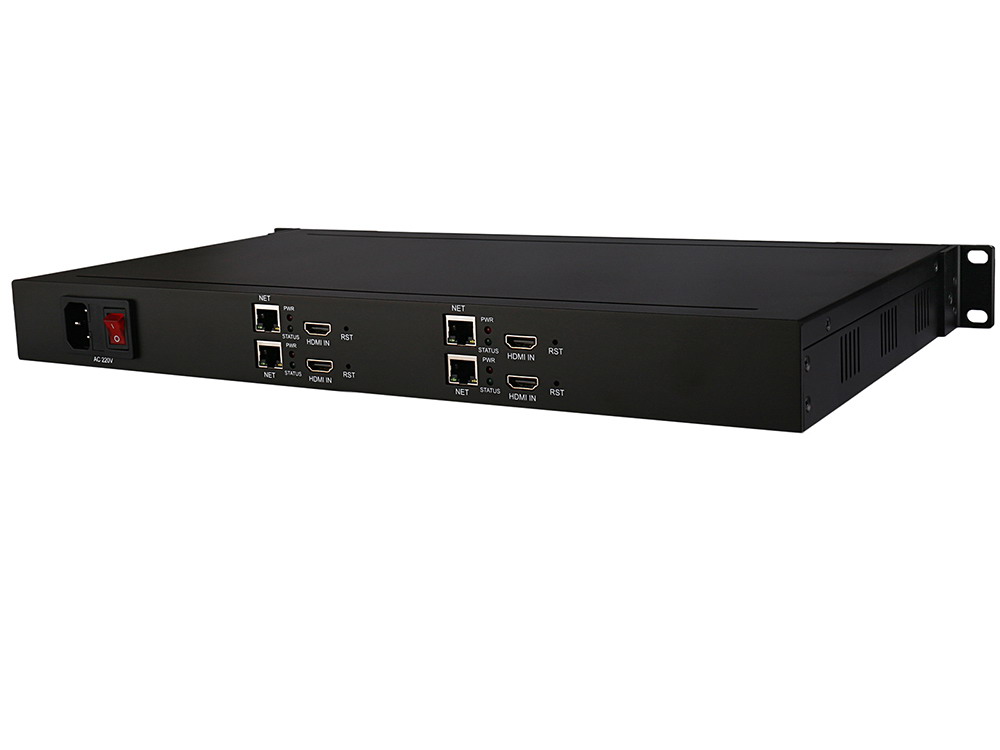

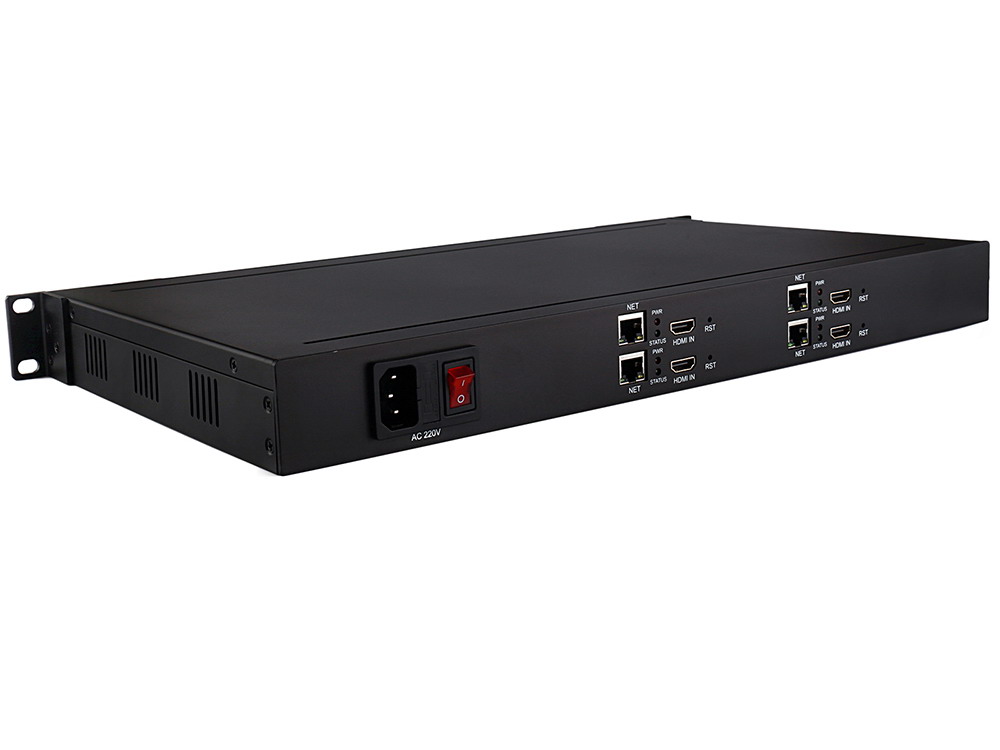

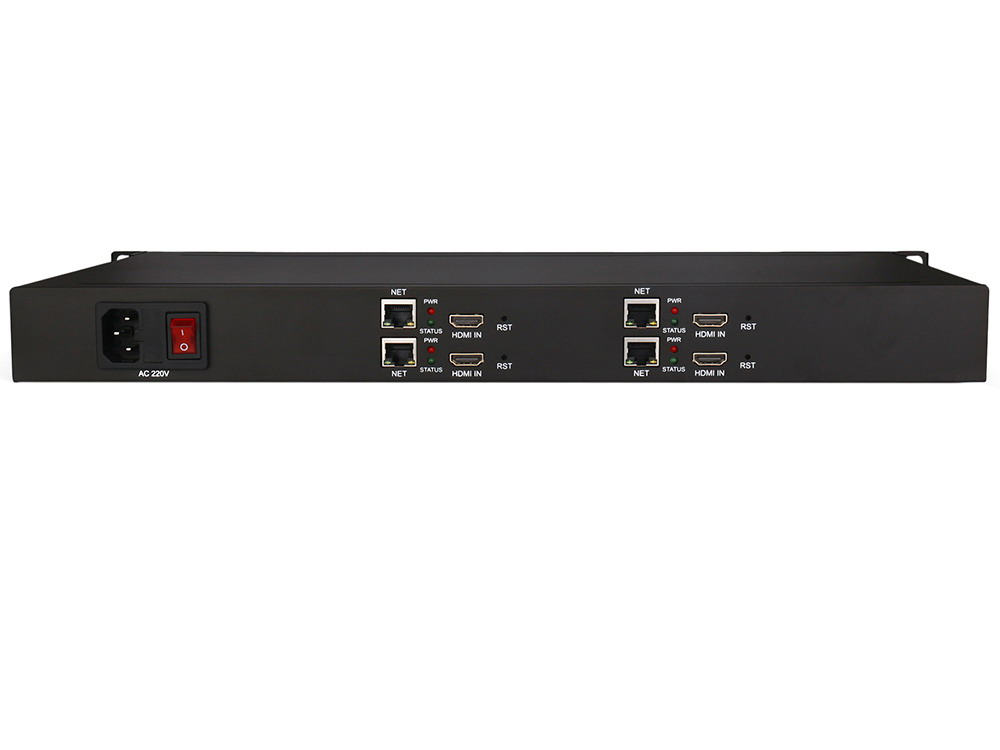

OPR-NH400U 1U Rack-mounted 4 Channel H.264 HDMI IP Streaming Encoder
- Description
- Specs
- Downloads
OPR-NH400U 1U Chassis H.264 HDMI IP Streaming Encoder - It is a HD audio & video encoding device with powerful functionality, which supports 1-4 channels HDMI input, max resolution at 1920x1080@60fps, output stream max resolution is 1080P@60fps. This Encoder works with HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. It also works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features
1. Support 1-4 HDMI input and encoding simultaneously.
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolutions - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
7. Support Text and image insert as Stream Logo for Main stream & Sub stream.
8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
9. Output Stream bitrate adjustable.
10. Support Audio digital gain.
11. Support firmware upgrade.
12. Support remote control via router port forward.
3U chassis available, max supports 16Pcs Encoder installed.
| Interfaces | |
| Video Input | 1-4 HDMI input, Max support 1920x1080P@60Hz |
| Audio Input | HDMI embed audio |
| Ethernet | 1-4 RJ-45, 100Mbps |
| Video Encoding | |
| Video Format | H.264/AVC High/Main/Baseline Profile MJPEG/JPEG baseline |
| Video Resolution | Max support 1920x1080P@60FPS |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/CBR |
| Streaming Protocols | HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
| Audio Encoding | |
| Audio Format | AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 / Opus / G711 |
| Sample Rates | 44.1kHz/48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L × W × H) | 1U 483 (L) *250 (W) *44.5 (H) mm |
| Approx weight | 4.5kgs |
| Power adapter | AC input 100-240V 50/60Hz DC output 12V 8.5A |
