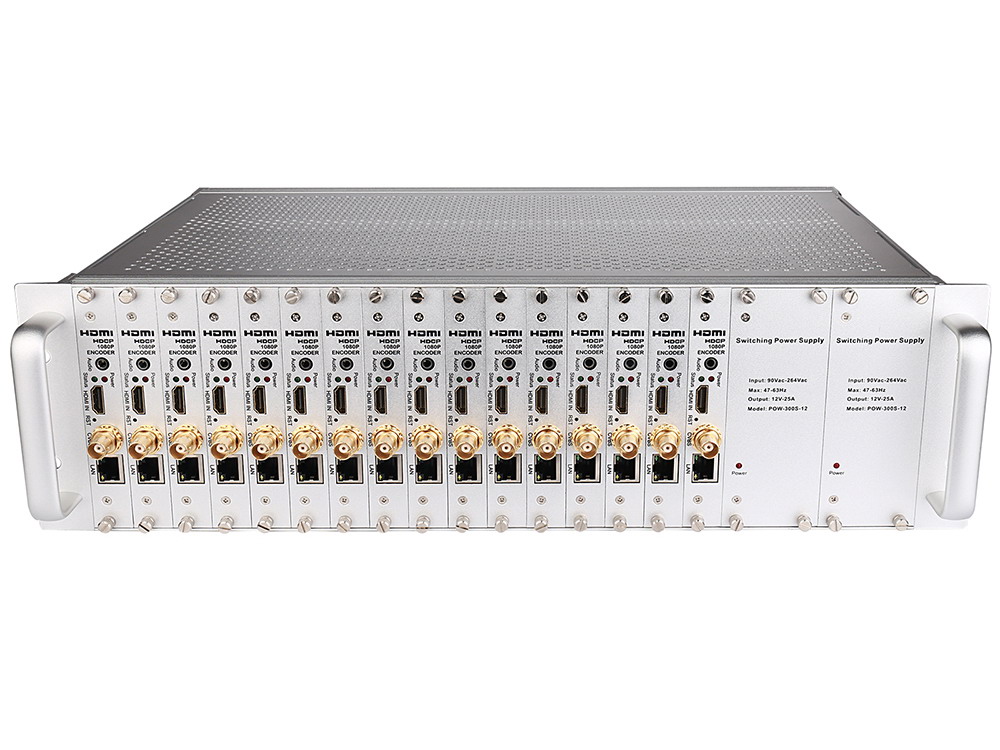

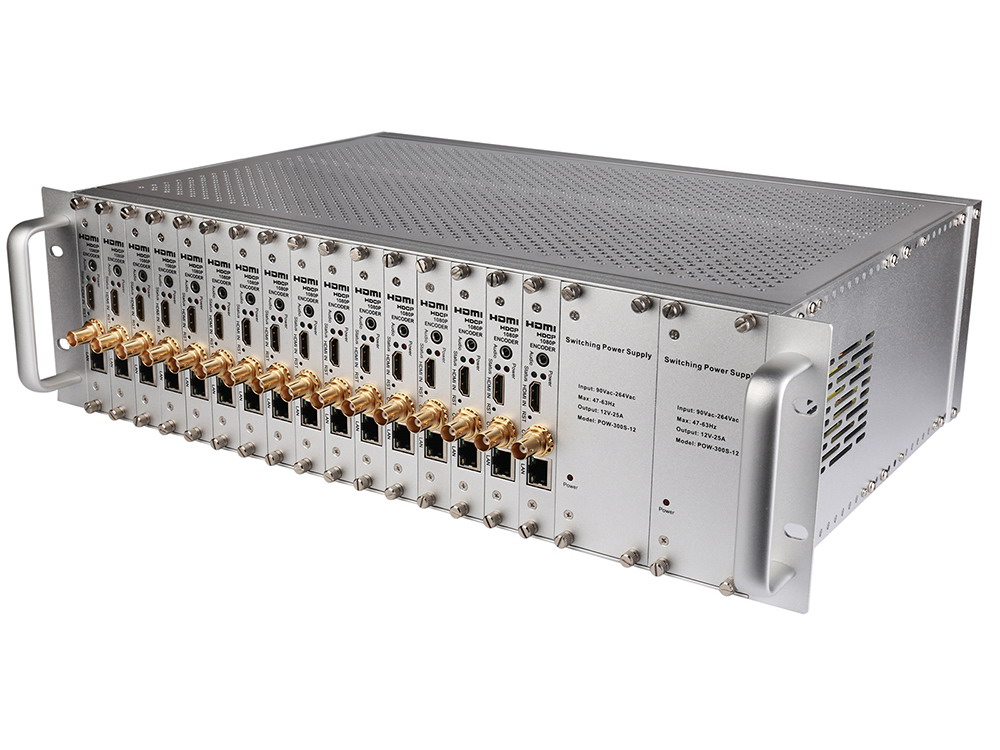

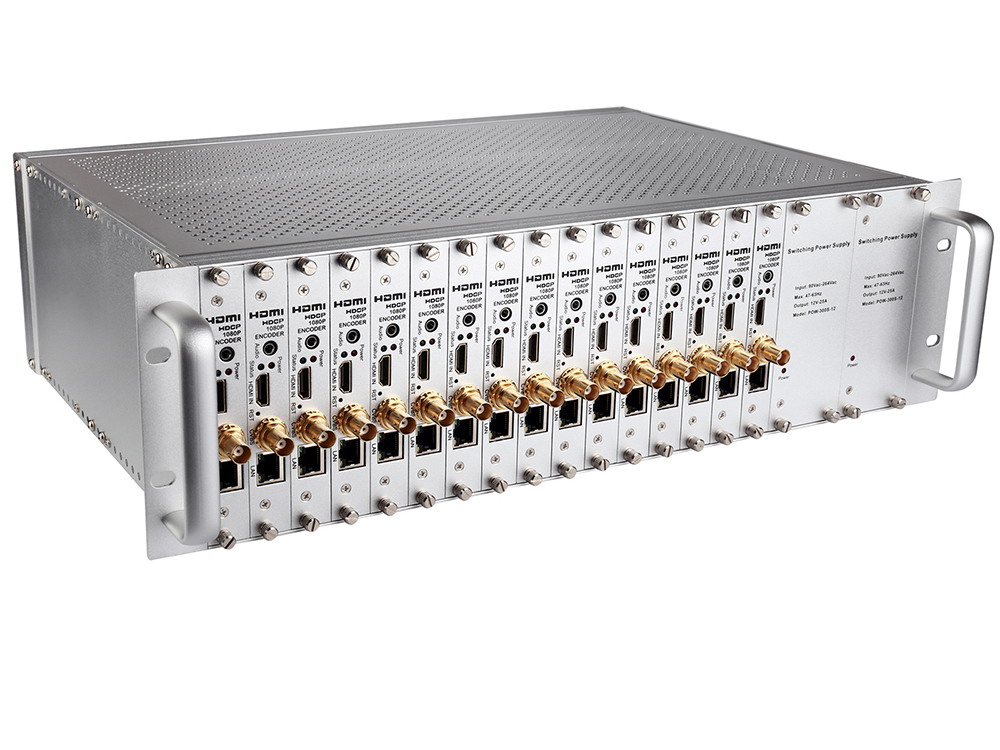

OPR-NH1600CH 3U Rack-mounted 16 Channels H.264 HDMI CVBS IP Streaming Encoder

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-NH1600CH 16 Channels HDMI CVBS IP Streaming Encoder - It is a HD audio & video encoding device with powerful functionality, supports HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. By RTMP(S) send IP Stream to online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc. This Encoder supports input HDMI max resolution at 1920×1080@60fps, and output stream resolution to 1080P/720P@60fps, etc. It also supports CVBS (PAL/NTSC) encoding.


Product features

1. Support 1-16 Channels HDMI & CVBS (PAL & NTSC) input and encoding simultaneously.

2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.

3. Friendly Web Control UI, default IP is 192.168.1.168.

4. Support HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.

5. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.

6. Provide custom resolutions, Main Stream Preset Resolutions - 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.

7. Support Text and image insert as Stream Logo for Main stream & Sub stream.

8. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.

9. Output Stream bitrate adjustable.

10. Support External Analog audio input.

11. Support Audio digital gain.

12. Support firmware upgrade.

13. Support remote control via router port forward.

14. 1U chassis available, max supports 4Pcs Encoder card installed.

Interfaces
Video Input 1-16 * HDMI input, Max support 1920x1080P@60Hz, 1-16 * CVBS
Audio Input 1-16 * HDMI embed audio & External Analog audio input.
Ethernet 1-16 *1Gbps, RJ-45
Video Encoding
Video Format H.264/AVC High/Main/Baseline Profile  MJPEG/JPEG baseline
Video Resolution Max support 1920x1080P@60FPS
Video Bitrate 0.1~32Mbps
Video FPS 5-60FPS
Bitrate Control VBR/CBR
Streaming  Protocols HTTP / HLS / FLV / RTSP / RTMP(S) / UDP / RTP ONVIF
Audio Encoding
Audio Format AAC / AAC+ / AAC++ / MP3 / MP2 / AC3 G711
Sample Rates 44.1kHz/48kHz
Bitrate 12~640kbps
System
Control Method Web based management - IP 192.168.1.168
Language Chinese-English control interface
Firmware Ethernet software upgrade
Working environment
Operating temperature -10 to 70 deg C
Storage temperature -20 to 80 deg C
Relative Humidity 5% to 90% non-condensing
Miscellaneous
Dimension (L× W× H) 3U  483 (L) *300 (W) *133 (H) mm
Approx weight 6.5kgs
Power adapter AC input 100-240V 50/60Hz  DC output 12V 25A
