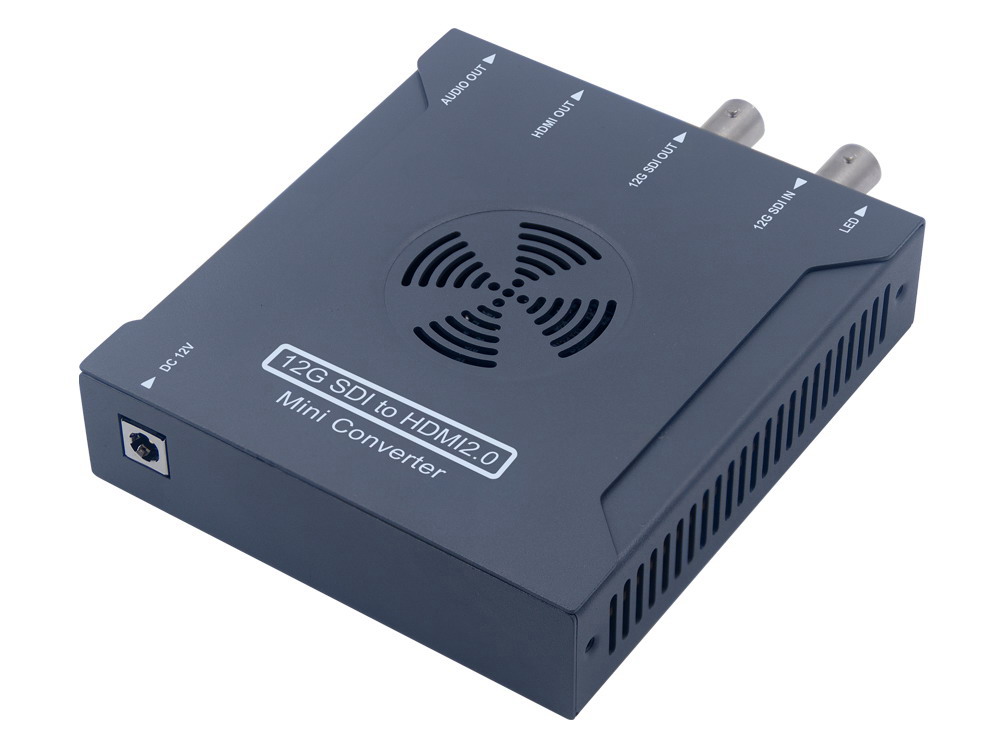

OPR-SH1204C 4K Video Converter
- Description
- Specs
- Downloads
Overview
The OPR-SH1204C 4K Video Converter is a 4K video converter from 12G-SDI to 4K HDMI. This converter is mainly used in the medical field, such as:
1. Medical Imaging Equipment: Many medical imaging devices, such as CT, MRI, ultrasound scanners, etc., need to convert the image signals they generate into signals that can be displayed on display devices. Your product can convert the SDI signals of these devices into HDMI signals, and then output them to display devices, such as medical-grade monitors or TV screens, through the HDMI interface. In this way, doctors and medical staff can view and analyze images more clearly and intuitively, thereby making more accurate diagnoses.
2. Remote Medicine and Teaching: With the development of remote medicine and internet medicine, your product can also be used for remote consultations and remote teaching. For example, a doctor performs surgery in one place, converts the image signal during the surgery into an HDMI signal through the SDI interface, and then transmits it to the display device in another place through the network in real time for other doctors or students to watch and learn.
3. Medical Equipment Monitoring: In critical areas of the hospital such as the ICU or operating room, medical staff need to monitor the working status of various medical devices in real time. Your product can convert the SDI signals of these devices into HDMI signals, and then output them to the display devices in the monitoring center through the HDMI interface, so that medical staff can view the working status of various devices in real time and clearly, and find and deal with problems in time.
Features
Support for 4:4:4/4:2:2/4:2:0
Support 8/10-bit workflows
Support YUV & RGB
HDR signaling metadata pass-through and optional override
Embedded audio support 24-bit
Monitor the device status via NMS
Three year warranty
OEM & ODM welcomed.

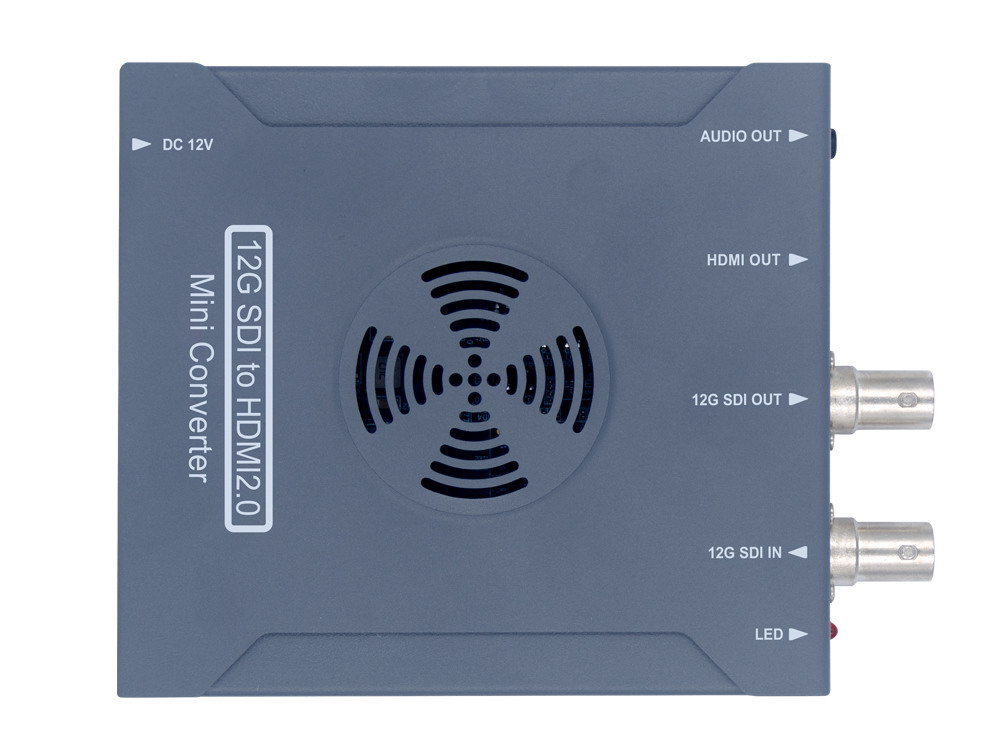

Interface
1x12G SDI BNC
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M A/B, SMPTE ST-2081, ITU-R
BT.656, ITU-R BT.601
1xHDMI2.0a Output
SDI & HDMI Support
UHD - 3840x2160p@60/59.94/50/30/29.97/25/24/23.98
HD - 720p@50/59.94/60,
1080i50,1080i59.94,1080i60,1080p@23.98/24/25/29.97/30/50/59.94/60
Audio
embedded audio, 24-bit
Size (w x d x h) & Weight
5" x 4" x 1.15" (127 x 101.6 x 30 mm) 1.54lb (0.7 kg)

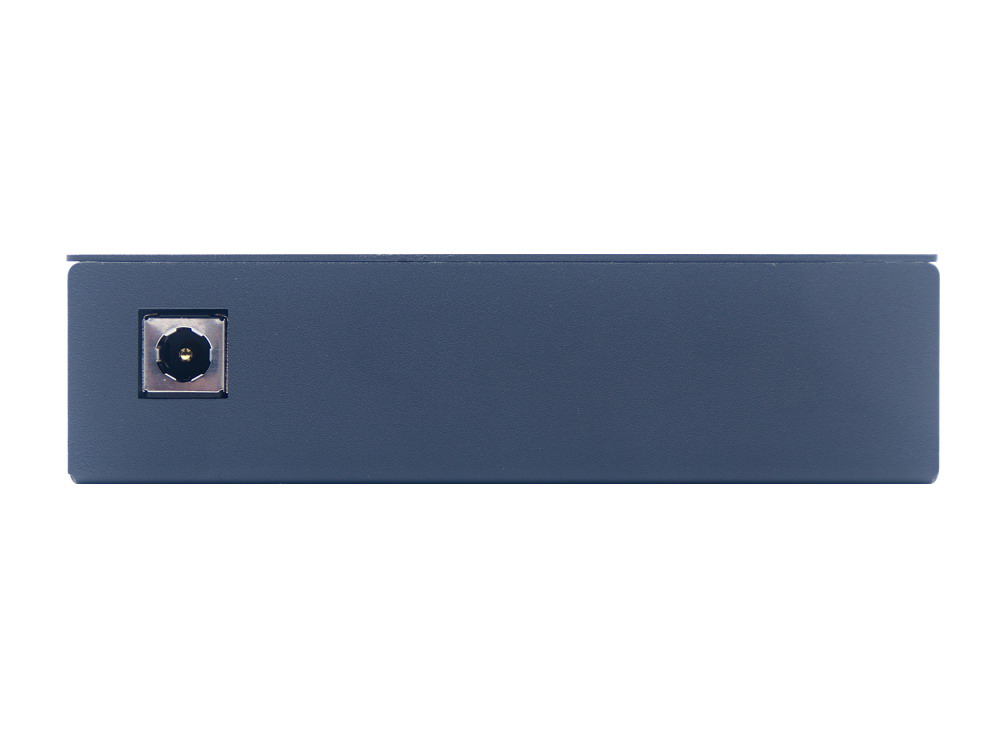

Power
DC12V 1A
AC Adapter: 100-240VAC, 50/60 Hz, universal input
Environment
Safe Operating Temperature: 0 to 40 C (32 to 104 F)
Safe Storage Temperature (Power OFF): -40 to 60 C (-40 to 140 F)
Operating Relative Humidity: 10-90% noncondensing

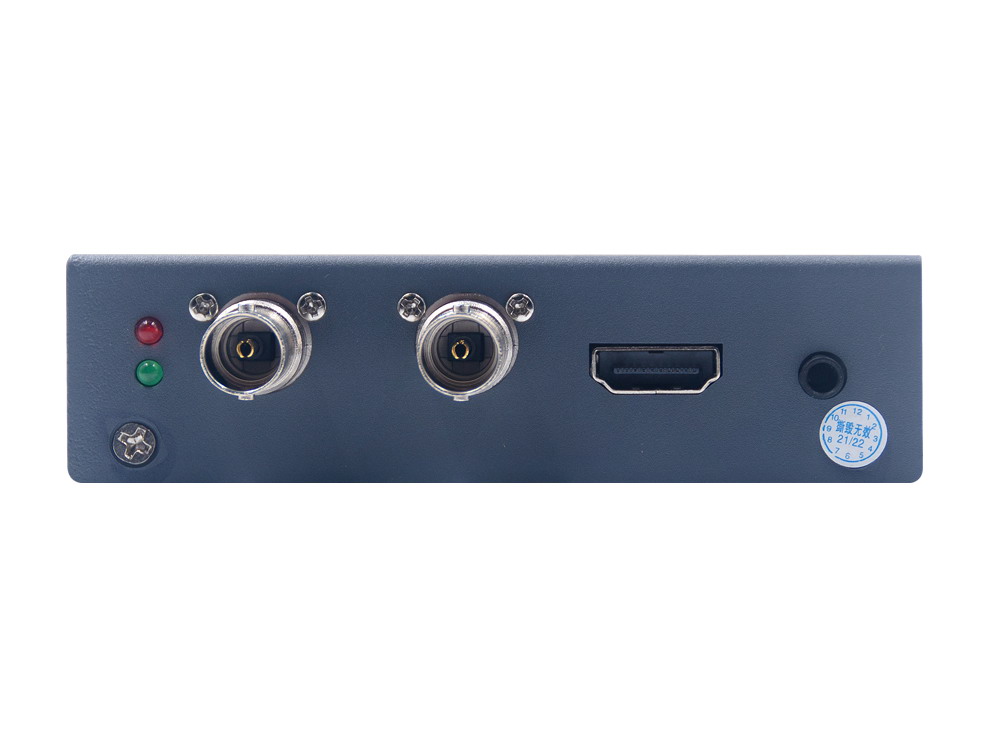

Status Indicator LEDs
Red LED - Power on /off Green Led - Input Signals status, flicker - failed, lighting - locked
