CCTV analog to IP converter

Problem
Still Using Legacy Analog CCTV Cameras?
Many surveillance systems still rely on analog cameras and coaxial cables. Replacing the entire system can be expensive and time-consuming.
Solution
Analog Camera to IP Network Conversion
The video encoder converts analog CCTV signals into digital IP streams, allowing existing cameras to connect with NVRs, VMS platforms, and network monitoring systems.

A CCTV analog to IP converter (also called an IP video encoder, or DVR encoder) lets you connect traditional analog CCTV cameras (CVBS, BNC, coaxial) to an IP-based network — so they can be viewed, recorded, or managed like modern IP cameras.

Oupree  analog to IP video converter/encoder link, Convert CVBS/BNC analog cameras into IP video streams for NVR, VMS, and remote monitoring without replacing existing cameras.


1. What It Does

• Takes analog video input (from old CCTV cameras).
• Converts the signal to digital IP video.
• Streams it over Ethernet (LAN) using RTSP, ONVIF, HTTP, or proprietary protocols.
• Makes your analog cameras appear as IP cameras to NVRs, VMS software, or VLC.




2. Common Types

Type	Channels	Description
Single channel encoder	1	Converts one analog camera to IP. Great for small upgrades.
Multi‑channel encoder	4 / 8 / 16	Converts multiple cameras at once.

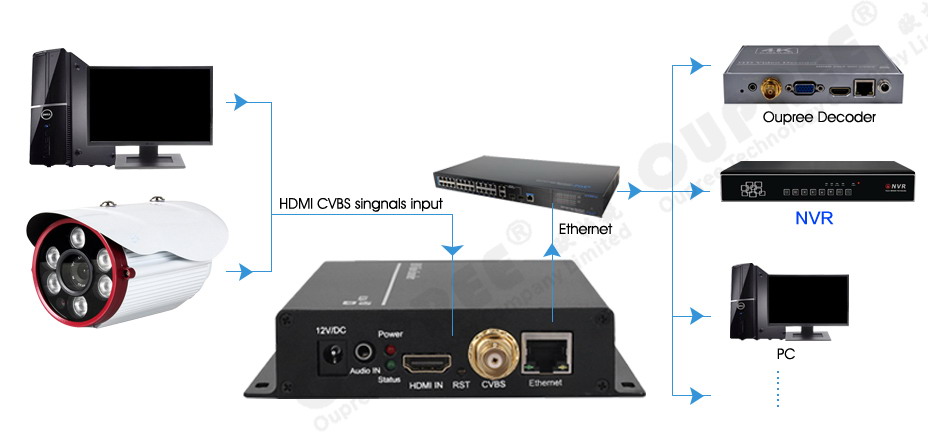

3. Typical Connections

Analog camera → Encoder → Switch → NVR/PC

[Analog Camera]──(BNC)──>[Encoder]──(Ethernet)──>[Router/NVR/VMS]

Some models also support audio.



4. Streaming Example

If you want to access the stream (e.g. via VLC or FFmpeg), once the encoder is set up with an IP address:

rtsp://192.168.1.168/0

or via ONVIF discovery in your NVR/VMS.



5. When to Use One

• You have existing coax wiring and want to avoid rewiring Ethernet.
• You want to integrate old analog cameras into a new IP system.
• You need to stream analog camera video over LAN/Internet.





Quick Questions

If you want a specific recommendation, tell me:

• How many analog cameras you have
• Whether you need local recording (DVR) or just IP streaming

Key Benefits
✅ Reuse Existing CCTV Infrastructure
Keep existing analog cameras and coaxial cables without a complete replacement.
✅ Easy IP Network Integration
Compatible with NVR, VMS, RTSP, and ONVIF-based systems.
✅ Remote Video Access
Enable centralized monitoring and remote management.
✅ Cost-Effective CCTV Upgrade Upgrade legacy surveillance systems gradually and reduce deployment costs.


Applications
Legacy CCTV System Upgrade
Security Surveillance
Industrial Monitoring
Transportation Monitoring
Campus Security
Government & Public Safety
Commercial Buildings
Hybrid Analog/IP Surveillance Systems
