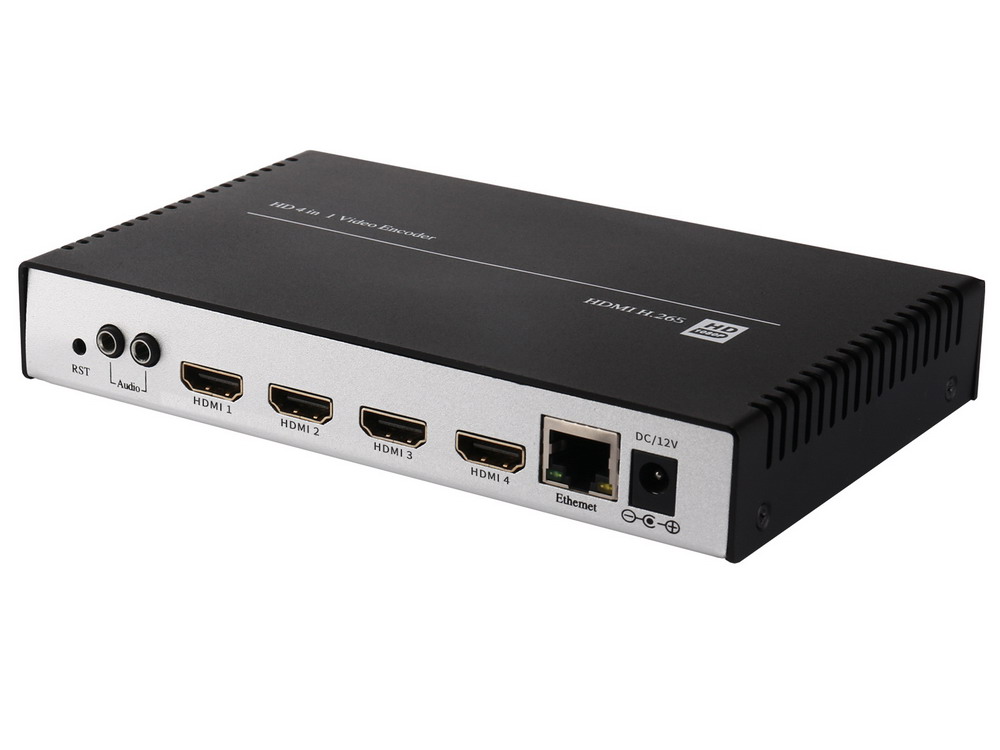

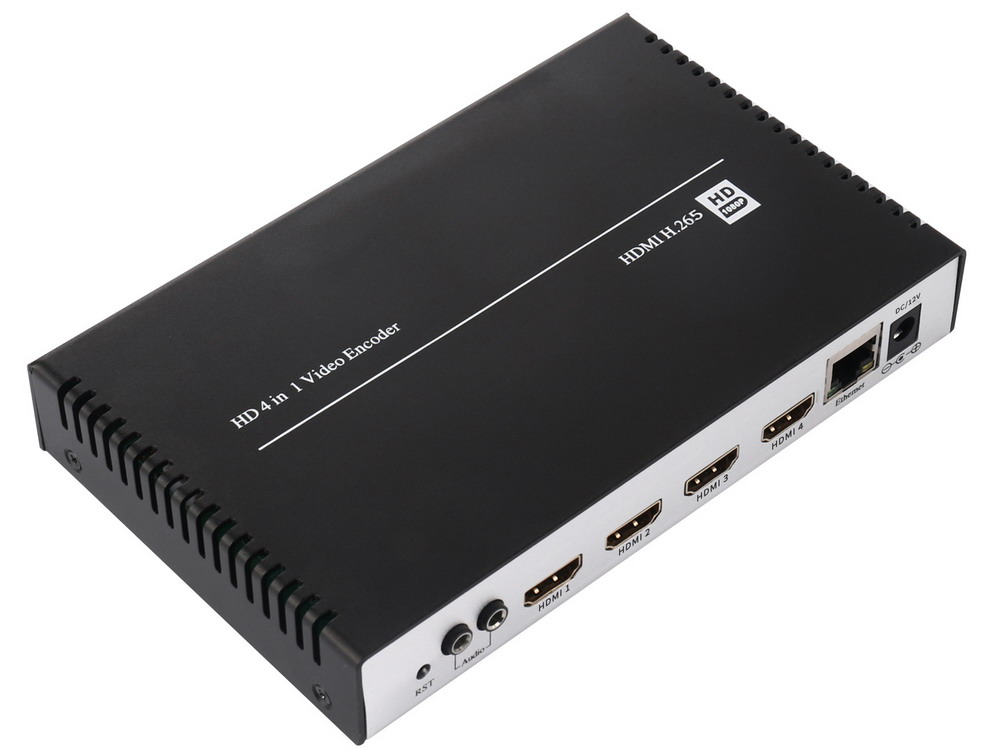

OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder
- Description
- Specs
- Downloads
OPR-NH401PH 4 Channels H.265 HDMI IP Streaming Encoder - which supports input HDMI max resolution at 3840x2160@30fps, and output stream resolution up to 3840x2160@30fps. It encode HDMI video and audio signals into IP streams that can be transmitted over the internet or a local network. It works with SRT, HTTP, HLS, FLV, RTSP, RTMP(S), UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF, and can output multiple streams simultaneously for each channel. It can be used for live broadcasting, IPTV, video conferencing, digital signage, and other applications that require high-quality video streaming.
Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.
Product features
1. Support 4 x HDMI input and encoding simultaneously.
2. Adopts professional encoding chip, embedded HiLinux System, high stability and efficiency.
3. Friendly Web Control UI, default IP is 192.168.1.168.
4. Support SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF.
5. Support output Multi RTMP(S) (Main stream & Sub stream) to different Media Streaming Server.
6. Provide custom resolutions, Main Stream Preset Resolutions - 3840x2160, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x800, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 480x270, etc.
7. Support static text, scrolling text, png logos, or timestamps to the output video streams.
9. Automatic detect the input video signals, output stream will show no signals when input signals interrupted.
10. Output Stream bitrate adjustable.
11. Support External Analog audio input.
12. Support Audio digital gain.
13. Support firmware upgrade.
14. Support remote control via router port forward.
Our Services
1. 1-Year Warranty.
2. Online, remote help.
3. Encoder Function customizes.
4. OEM & ODM welcomed.
Application
1. IPTV (Wowza Media Server, etc.)
2. Online Live Broadcast ( YouTube, Facebook, Ustream, Twitter, etc.)
3. NVR (Network Video Recorder)
4. Recording System / Software
5. Digital Signage
6. Teaching / Campus Broadcast
7. Hotel TV system
8. Video Conference

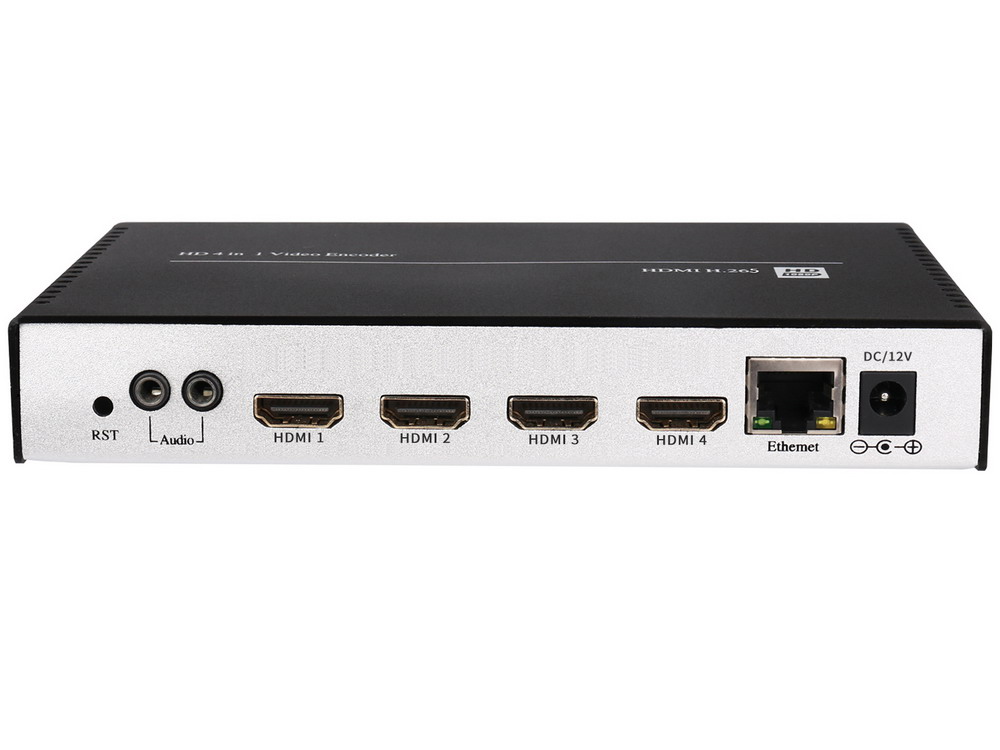

| Interfaces | |
| Video Input | 4*HDMI input, HDMI 1 & 2 Max supports 3840*2160@30FPS, HDMI 3 & 4 Max @1080P 60FPS |
| Audio Input | HDMI embed audio & 2* Analog audio Line-in |
| Ethernet | 1000Mbps, RJ-45 |
| WiFi | Option 2.4G & 5.8G |
| Video Encoding | |
| Video Format | H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline |
| Video Resolution | support 2 channels 4k@30fps plus 2 channels 1080p@60fps or 4 channel 1920x1080P@60fps |
| Video Bitrate | 0.1~32Mbps |
| Video FPS | 5-60FPS |
| Bitrate Control | VBR/CBR |
| Streaming Protocols | SRT / HTTP / HLS / FLV / RTSP / RTMP(S) / UDP/RTP (Unicast/Multicast) ONVIF |
| Audio Encoding | |
| Audio Format | AAC/ AAC+/ AAC++ /MP3/ MP2/ AC3 G711 |
| Sample Rates | 44.1kHz/48kHz |
| Bitrate | 12~640kbps |
| System | |
| Control Method | Web based management - IP 192.168.1.168 |
| Language | Chinese-English control interface |
| Firmware | Ethernet software upgrade |
| Working environment | |
| Operating temperature | -10 to 70 deg C |
| Storage temperature | -20 to 80 deg C |
| Relative Humidity | 5% to 90% non-condensing |
| Miscellaneous | |
| Dimension (L x W x H) | 167*107*27mm |
| Approx weight | 350g |
| Power adapter | AC input 100-240V 50/60Hz DC output 12V 1A |
