Oupree Encoder settings for HDR 4K videos using 10-bit x265

1. 4K60 HDR HDMI SDI IP Streaming Encoder settings

1.1 Select H.265 & Main 10 Profile

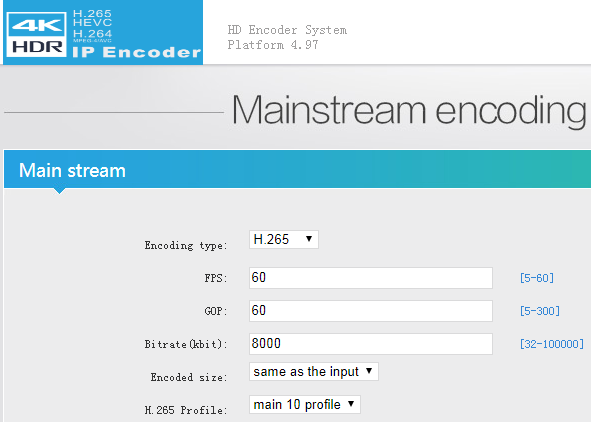

   Oupree HDR 4K60 Video Encoder Settings

 1.2 System-Advanced
 a. Select the EDID with HDR.
 b. Gamut: BT2020
 c. Dynamic Range: HDR Note: Please select the BT709&SDR if input video not HDR.
 Oupree HDR 4K60 Video Encoder System Settings


 2. Input Video Settings： Select the HDR output and 10bit if you can.
 2.1 For Apple TV
 Apple TV 4K-HDR output
 2.2For PC, enable the HDR, read here, https://support.microsoft.com/en-us/help/4040263/windows-10-hdr-advanced-color-settings
 Windows HDR ouput

3.Test the 4K HDR Video Streaming by VLC, default settings support the HDR playback. For PotPlayer, see below settings or install the HDR plugin.

 PotPlayer-HDR-Play back settings for OUPREE HDR VIDEO ENCODER
 4. Check the play back video codec by Potplayer, press Ctrl+F1, File Info tab,

Oupree 4K HDR Encoder play back video codec
