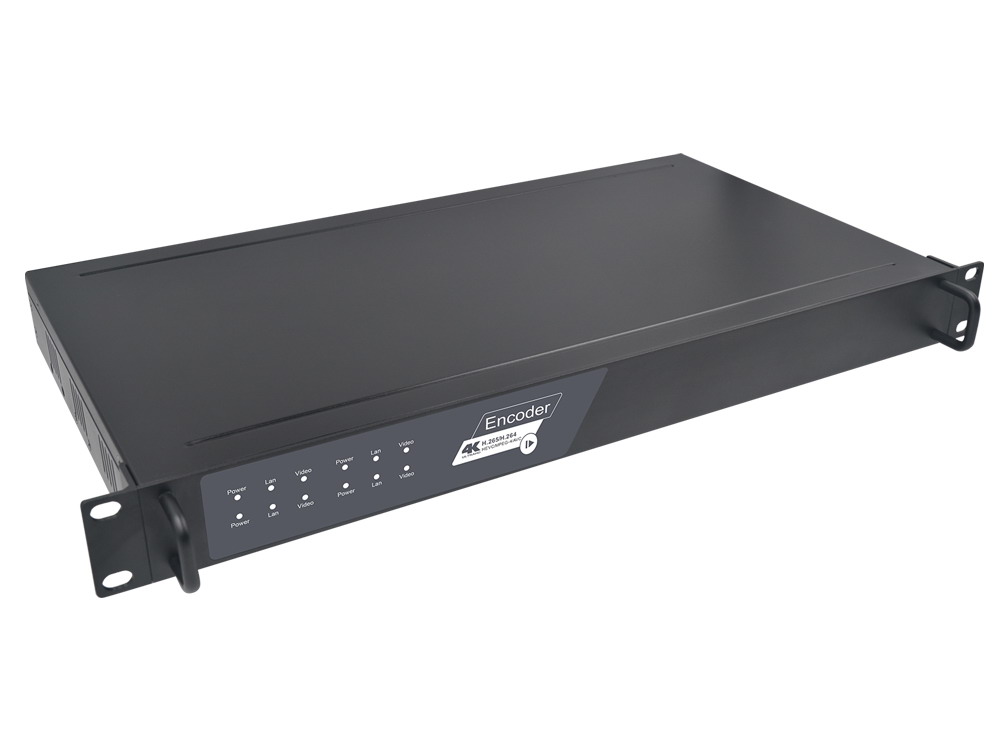

OPR-E4KP-1U Rack-mounted 4 Channels 4K60 HDMI IP Streaming Encoder

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-E4KP-1U Rack-mounted 4 Channels 4K60 HDMI IP Streaming Encoder - which supports input 4xHDMI max resolution at 4096x2160@60fps, and output stream resolution up to 4096x2160@60fps. This Encoder works with  SRT / HTTP / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Facebook, Ustream, Twitter, etc.

Product features

1. Embedded HiLinux System, stable and effective.

2. Friendly Web Control UI, default IP is 192.168.1.168.

3. Support HTTP / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF.

4. Support output Multi RTMP(S) (Main stream & Sub stream.) to different Media Streaming Server.

5. Support 4K SMPTE 4096x2160@60fps / 3840x2160@60 / 2560x1440@144fps .. etc., HDMI input and encoding

6. Support BT.2020 WCG

7. Support HDR10, 10bit input and encoding. To fully support 10bit, please ensure that HDMI input is 10bit input, and select h.265 Main10 Profile encoding

8. Support 100m bit rate encoding

9. Support one click recording, support USB 3.0/TF card in NTFS/exFAT/FAT32 format, with SAMBA server built-in, and video can be viewed through network.

10. Support Text and image insert as Stream Logo for Main stream & Sub stream.

11. Output Stream bitrate adjustable.

12. It supports audio & video Pass-Through by the main chip

13. Support External Analog audio input.

14. Support Audio digital gain.

15. Support remote control via router port forward.

16. Support firmware upgrade.

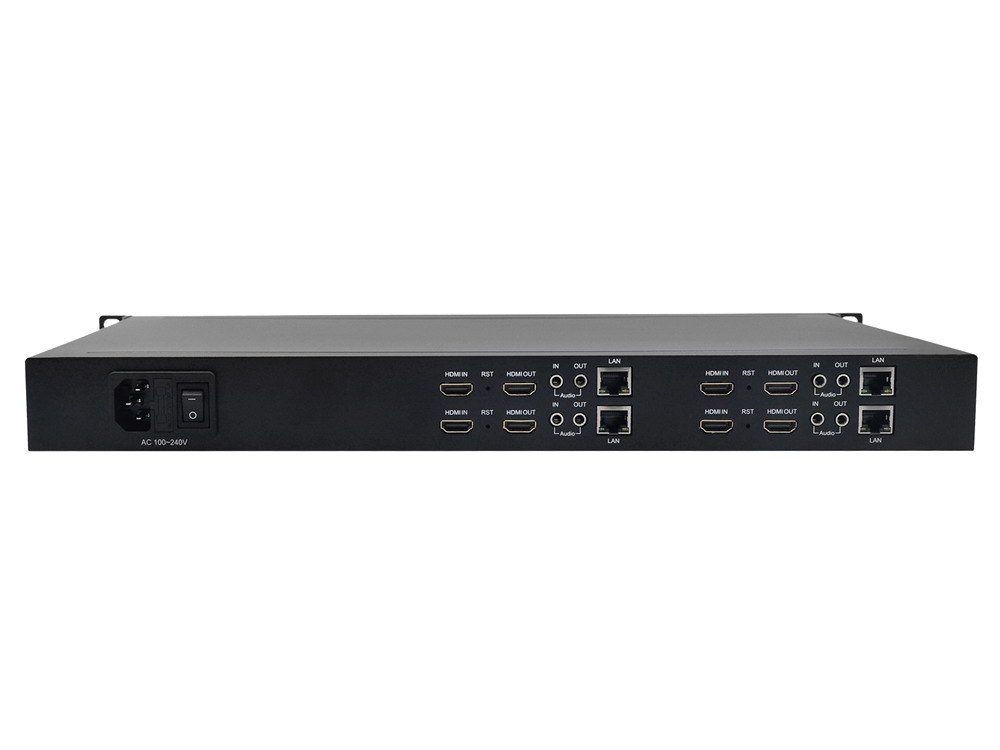

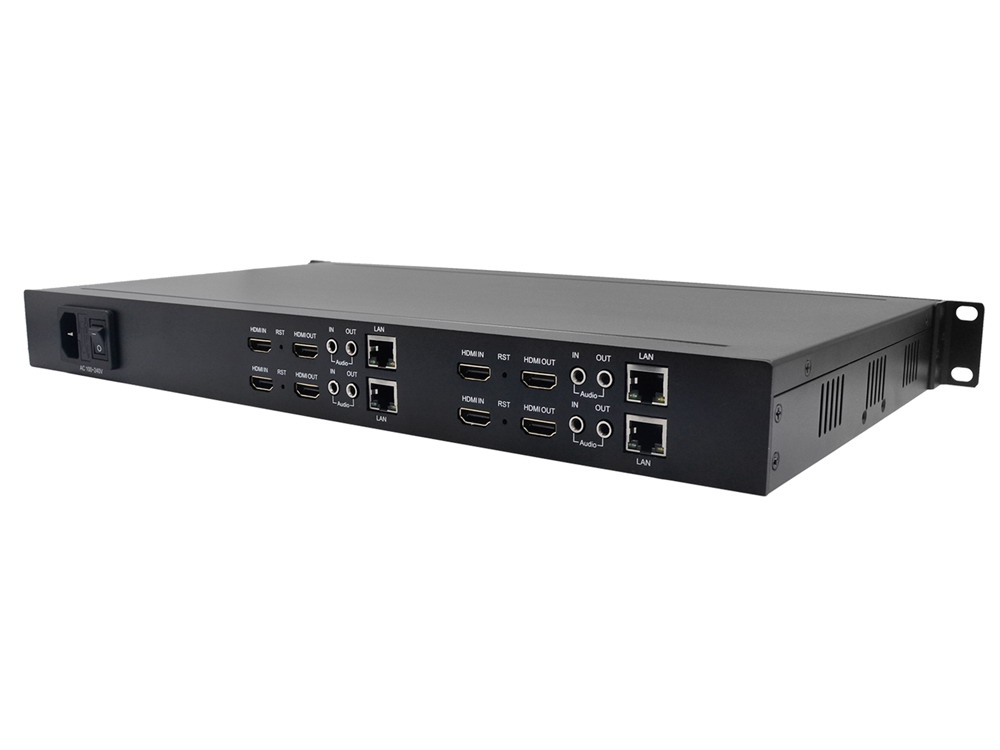

Interfaces
Video Input max 4xHDMI input, Max support 4096x2160@60fps / 3840x2160@60  / 2560x1440@144fps,etc.
Audio Input HDMI embed audio & External Analog audio input
Ethernet 4x1000Mbps, RJ-45
WiFi Option  2.4G & 5.8G
Video Encoding
Video Format H.264/AVC High/Main/Baseline Profile H.265/HEVC main profile MJPEG/JPEG baseline
Video Resolution Max support 4096x2160@60fps
Video Bitrate 0.1~100Mbps
Video FPS 5-144FPS
Bitrate Control VBR/CBR
Streaming  Protocols HTTP / HTTPS / HLS / FLV / RTSP / RTMP / RTMPS  / UDP/RTP (Unicast/Multicast) TS Stream Protocols and ONVIF.
Audio Encoding
Audio Format AAC/AAC+/AAC++ /MP3/MP2/AC3 G711
Sample Rates 44.1kHz/48kHz
Bitrate 12~640kbps
System
Control Method Web based management - IP 192.168.1.168
Language Chinese-English control interface
Firmware Ethernet software upgrade
Working environment
Operating temperature -10 to 70 deg C
Storage temperature -20 to 80 deg C
Relative Humidity 5% to 90% non-condensing
Miscellaneous
Dimension (L x W x H) 1U 483 (L) *250 (W) *44.5 (H) mm
Approx weight 4.5kgs
Power adapter AC input 100-240V 50/60Hz DC output 12V 8.5A
