OPR-MH100H Mini PCIe HDMI Video Capture Card

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-MH100H
PCI-Express Gen2 X1
JST SHD 20pin connector
1 HDMI Video Capture
Windows, Linux OS Supported

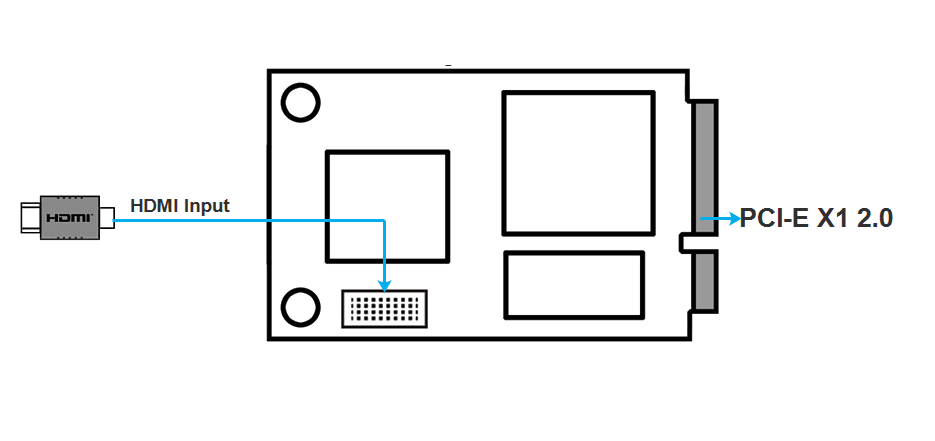

Interface

Connection
Host Interface PCI-Express Gen2 X1
Input Interface JST SHD 20pin connector HDMI
SDI Specific Features 225MHz HDMI receiver
                    Adaptive HDMI equalizer support for cables lengths up to 30M
                  Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Video Processing
Switch of Color Space Hardware Color Switch
De-interlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
Others
OS Support Support the following operating systems, including x86 and x64:
       Windows 7 / 8 /10
       Windows Server 2008 R2
       Linux (Kernel version 2.6.38 and above)
Software Compatibility

VLC
         OBS
         XSplit
         Wirecast
         VidBlaster
         VirtualDub
         Windows  Media Encoder
         Adobe Flash Media Live Encoder
Size(L*H) 30mm*51mm
Power Consumption <= 5W
Operating temperature 0-50℃
Storage temperature -20-70℃
Relative humidity 5%-90%
