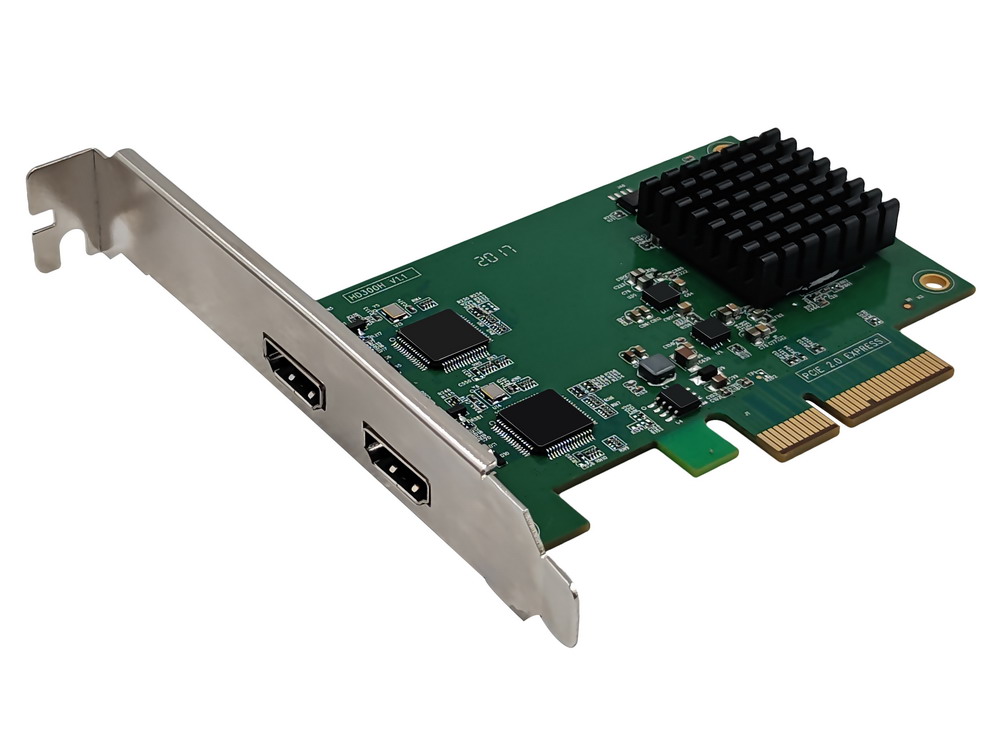

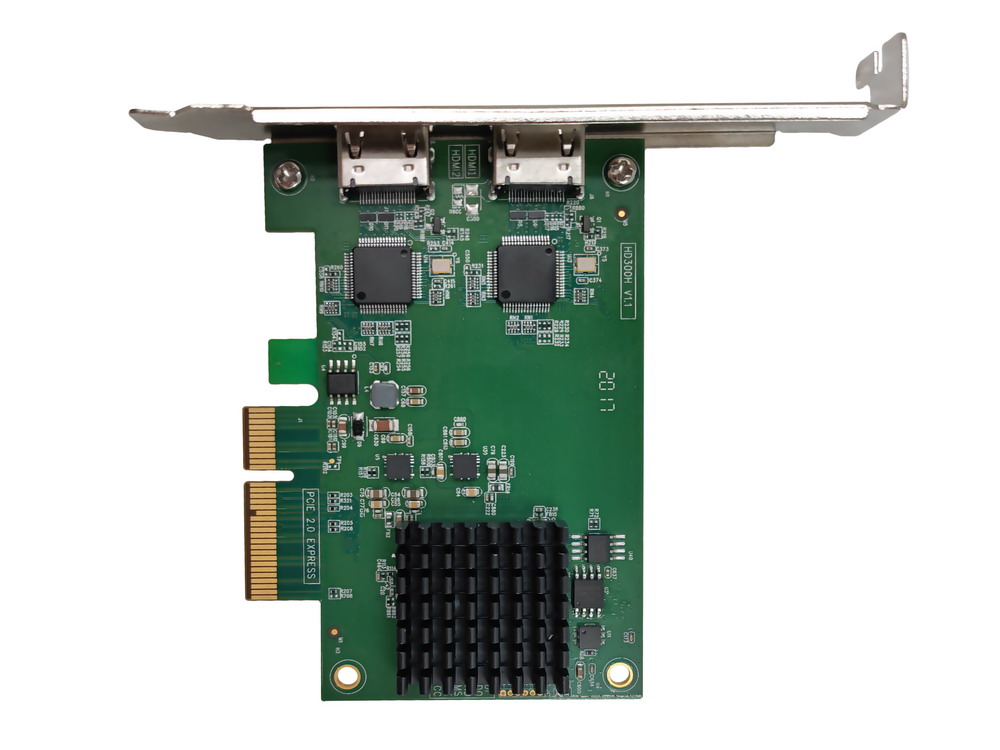

OPR-HD200H Dual HDMI Video Capture Card
Get more information, message us now!
- Description
- Specs
- Downloads
OPR-HD200H
PCI-Express Gen2 X4
Dual HDMI Video Capture
1080P Input and Capture
Windows, Linux OS Supported

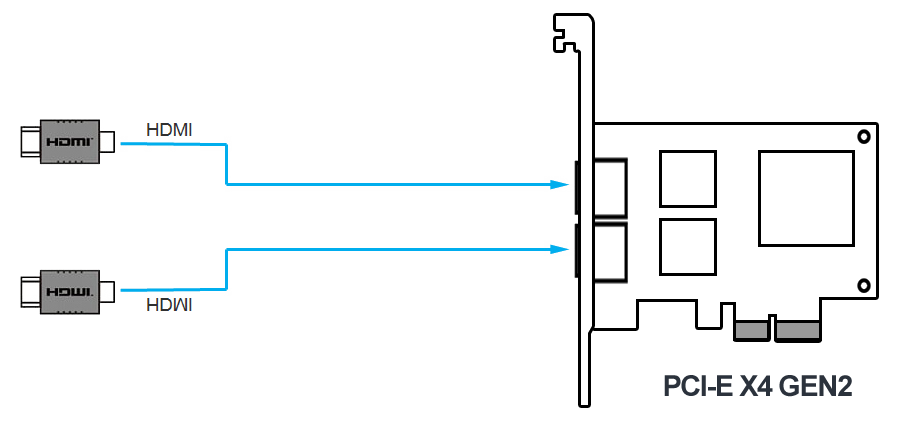

Interface
| Connection | |
| Host Interface | PCI-Express Gen2 X4 |
| Input Interface |
HDMI X2 |
| HDMI input resolution | 640x480p(60/72/75/8HZ) /800x600p(60/72/75/85HZ) 1024x768p(70/75/85HZ) /1280x768p(60/75/85HZ) 1280x960p(60//85HZ) /1280x1024p(60/75/85HZ) 1600x1024p60 /1600x1200p60 /1680x1050p60 /1920x1080p60 /1920x1200p60 /1152x870p75 /1024x576p60 /1280x720p60 /1360x768p60/ 1440x788p60 /1440x960p72 1440x1050p60/1152x864p75 |
| HDMI Specific Features | 225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling |
| Video Processing | |
| Switch of Color Space | Hardware Color Switch |
| De-interlacing | Vertical filter de-interlacing; motion-adaptive de-interlacing |
| Others | |
| OS Support | Support the following operating systems, including x86 and x64: Windows 7 / 8 /10 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) |
| Software Compatibility | VLC OBS XSplit Wirecast VidBlaster VirtualDub Windows Media Encoder Adobe Flash Media Live Encoder |
| Size(L*H) | 93mm*63.4mm |
| Power Consumption | <= 5W |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-70℃ |
| Relative humidity | 5%-90% |
