OPR-HD100S SDI Video Capture Card

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-HD100S
1 SDI Input
1080P Input and Capture
Windows, Linux OS Supported

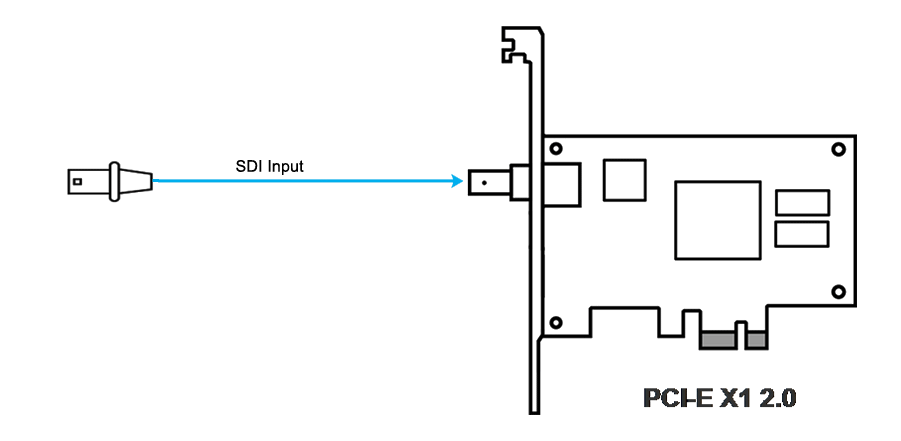

Interface

Connection
Host Interface PCI-Express Gen2 X1
Input Interface BNC - SD/HD/3G  SDI
SDI Specific Features Integrated cable equalizer extending the cable length as follows:
up to 330m for SD-SDI signals
up to 190m for HD-SDI signals
up to 150m for 3G-SDI signals
Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Video Processing
Switch of Color Space Hardware Color Switch
De-interlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
Others
OS Support Support the following operating systems, including x86 and x64:
Windows 7 / 8 /10
Windows Server 2008 R2
Linux (Kernel version 2.6.38 and above)
Software Compatibility

VLC
OBS
XSplit
Wirecast
VidBlaster
VirtualDub
Windows  Media Encoder
Adobe Flash Media Live Encoder
Size(L*H) 92.7mm*63.4mm
Power Consumption <= 5W
Operating temperature 0-50℃
Storage temperature -20-70℃
Relative humidity 5%-90%
