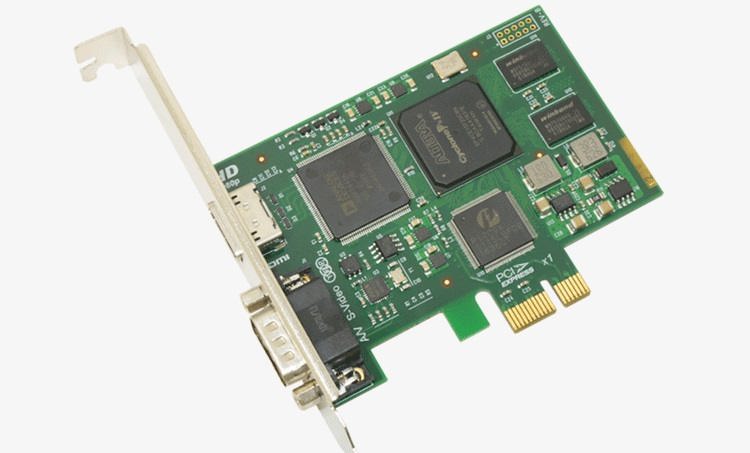

OPR-HD100H HDMI Video Capture Card

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-HD100H
Captures one of the followings
Component+audio
Composite+audio
S-video+audio
HDMI+embedded audio
Windows, Linux OS Supported

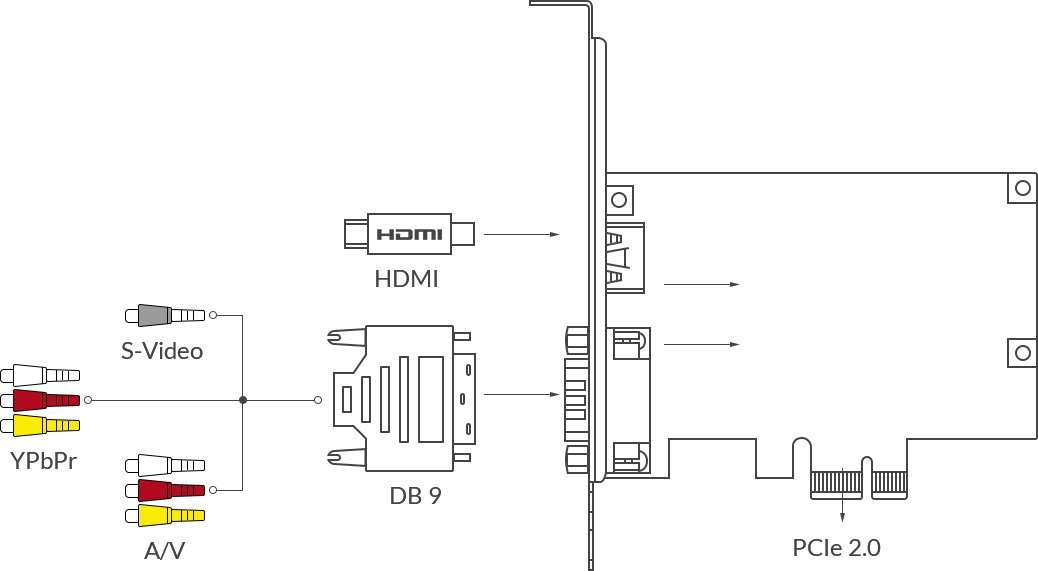

Interface

Connection
Host Interface PCI-Express Gen2
Input Interface

HDMI X1

HDMI input resolution 640x480p(60/72/75/8HZ) /800x600p(60/72/75/85HZ) 1024x768p(70/75/85HZ) /1280x768p(60/75/85HZ) 1280x960p(60//85HZ) /1280x1024p(60/75/85HZ) 1600x1024p60 /1600x1200p60 /1680x1050p60 /1920x1080p60 /1920x1200p60 /1152x870p75 /1024x576p60 /1280x720p60 /1360x768p60/ 1440x788p60 /1440x960p72 1440x1050p60/1152x864p75
HDMI Specific Features 225MHz HDMI receiver
       Adaptive HDMI equalizer support for cables lengths up to 30M
       Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
Video Processing
Switch of Color Space Hardware Color Switch
De-interlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
Others
OS Support Support the following operating systems, including x86 and x64:
       Windows 7 / 8 /10
       Windows Server 2008 R2
       Linux (Kernel version 2.6.38 and above)
Software Compatibility VLC
       OBS
       XSplit
       Wirecast
       VidBlaster
       VirtualDub
       Windows Media Encoder
       Adobe Flash Media Live Encoder
Size(L*H) 93mm*63.4mm
Power Consumption <= 5W
Operating temperature 0-50℃
Storage temperature -20-70℃
Relative humidity 5%-90%
