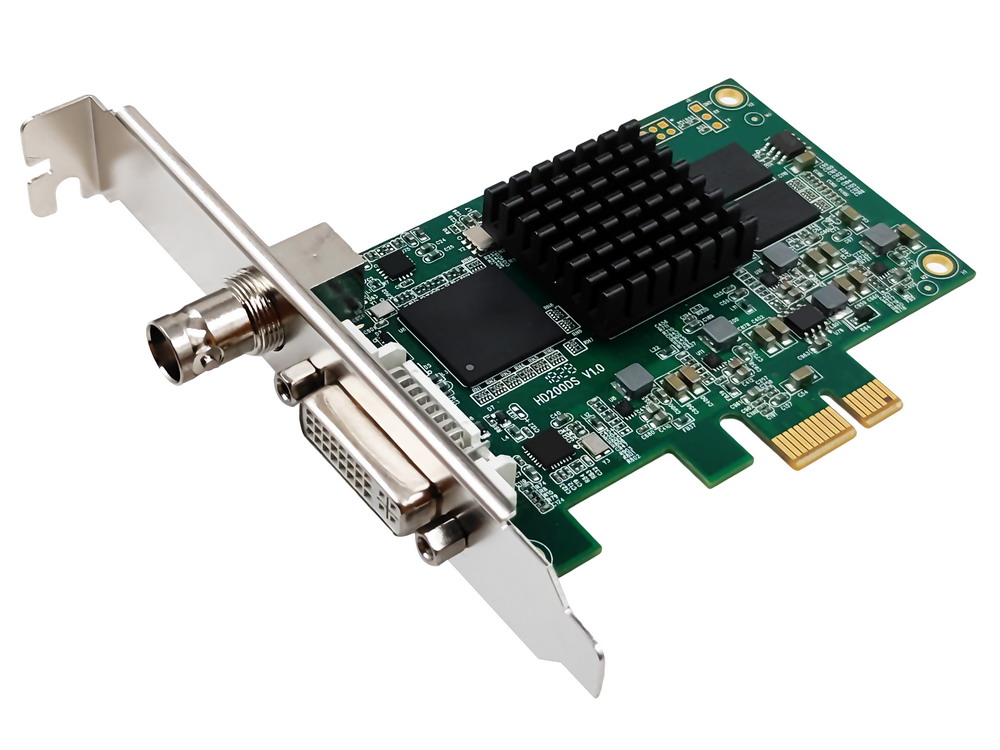

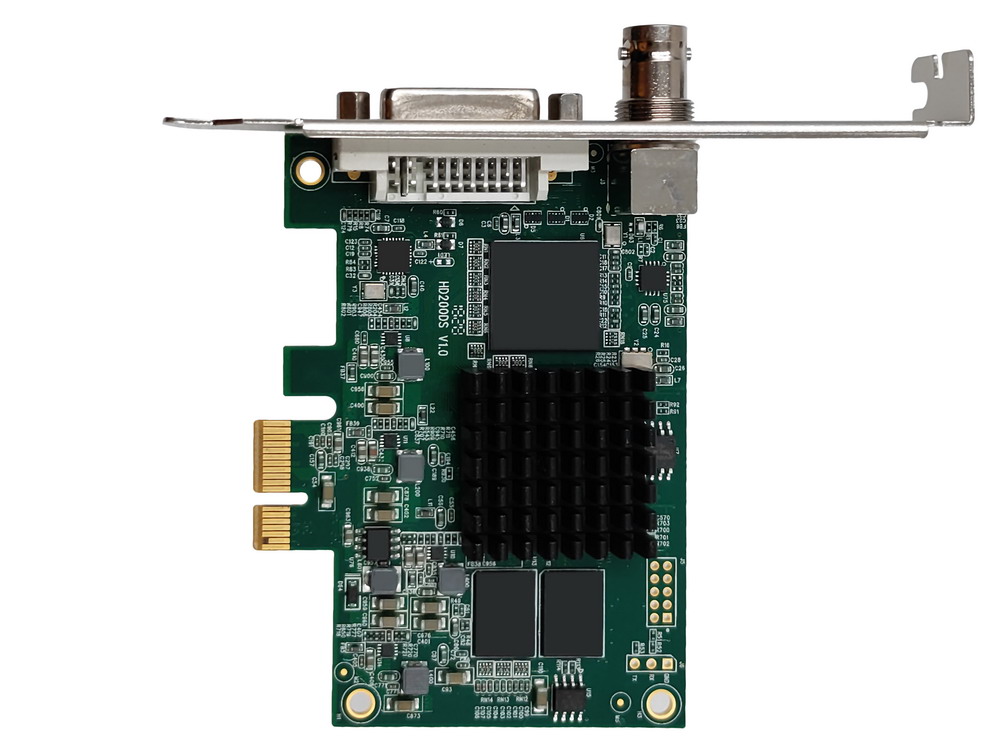

OPR-HD100DS DVI SDI Video Capture Card

Get more information, message us now!
  • Description
  • Specs
  • Downloads

OPR-HD100DS
1080p/60Hz for HD signals input
Capture 1 of SDI HDMI DVI VGA YPbPr signals
Windows, Linux OS Supported

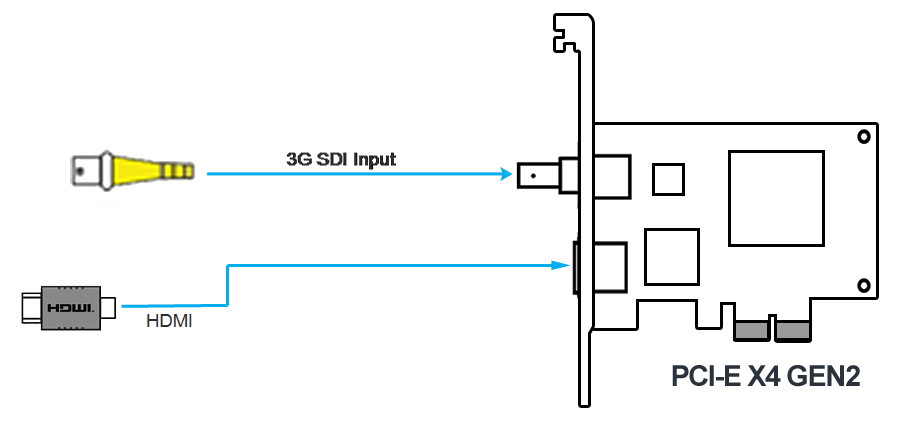

Interface

Connection
Host Interface PCI-Express Gen2 X1
Input Interface BNC - SD/HD/3G SDI
       DVI-I
       DVI 1.0

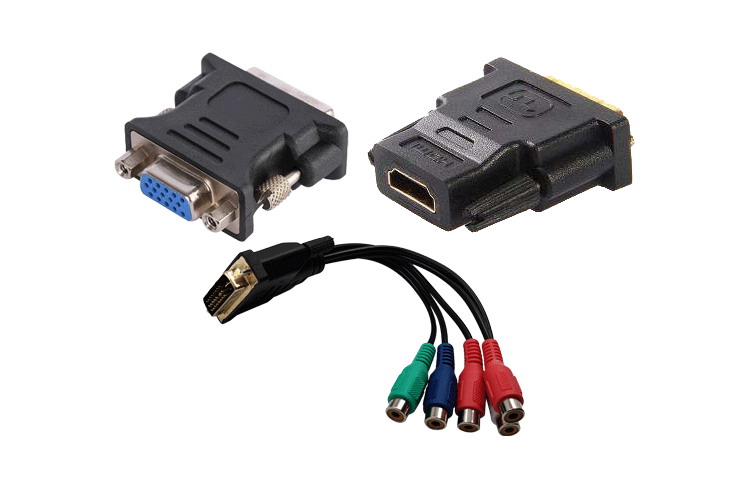

       HDMI 1.4a (via breakout cable)
       VGA (via DVI to VGA connector)
       Component (via breakout cable)
       Line in-3.5mm Phone Jack
SDI Specific Features Integrated cable equalizer extending the cable length as follows:
       up to 330m for SD-SDI signals
       up to 190m for HD-SDI signals
       up to 150m for 3G-SDI signals
       Support for SD/HD/3Ga/3Gb/3Gb-DL/3Gb-DS standards
       Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
HDMI Specific Features 225MHz HDMI receiver
       Adaptive HDMI equalizer support for cables lengths up to 30M
       Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
VGA Specific Features L2-bit ADC
       Support for RGB & YCbCr (YUV) color formats
       Support for ‘Separated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)
       Support for DMT, CEA, CVT, GTF video timings
       Input signals up to 165MHz pixel rate are digitized with 1:1 sampling
Video Processing
Switch of Color Space Hardware Color Switch
De-interlacing Vertical filter de-interlacing; motion-adaptive de-interlacing
Others
OS Support Support the following operating systems, including x86 and x64:
       Windows 7 / 8 /10
       Windows Server 2008 R2
       Linux (Kernel version 2.6.38 and above)
Software Compatibility VLC
       OBS
       XSplit
       Wirecast
       VidBlaster
       VirtualDub
       Windows Media Encoder
       Adobe Flash Media Live Encoder
Size(L*H) 93mm*68mm
Power Consumption <= 5W
Operating temperature 0-50℃
Storage temperature -20-70℃
Relative humidity 5%-90%
