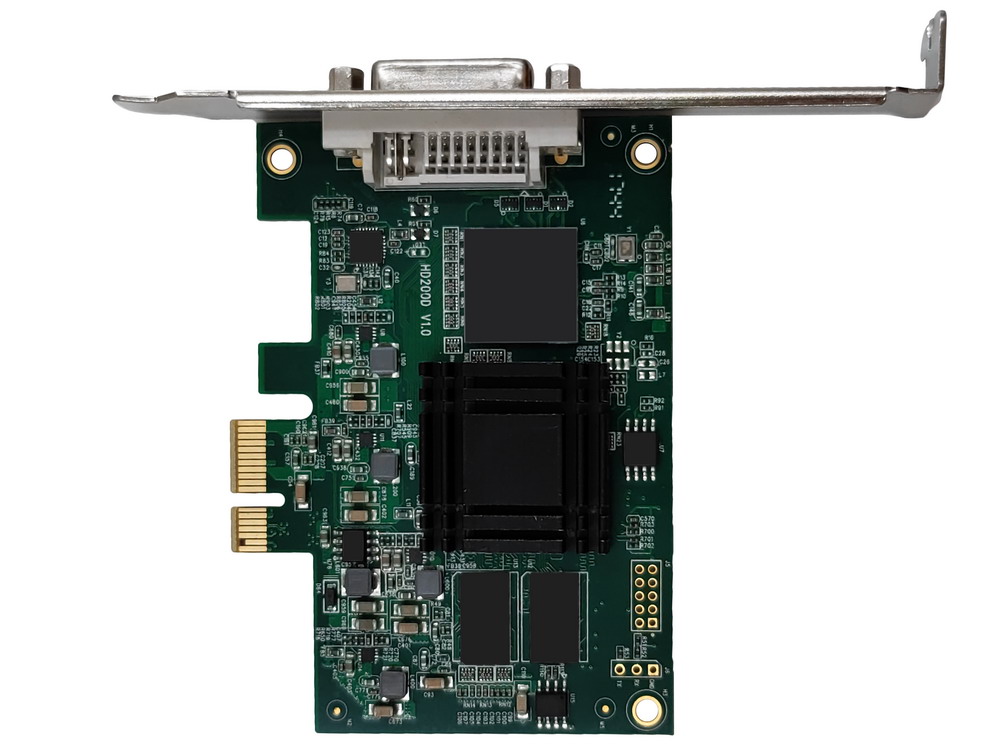

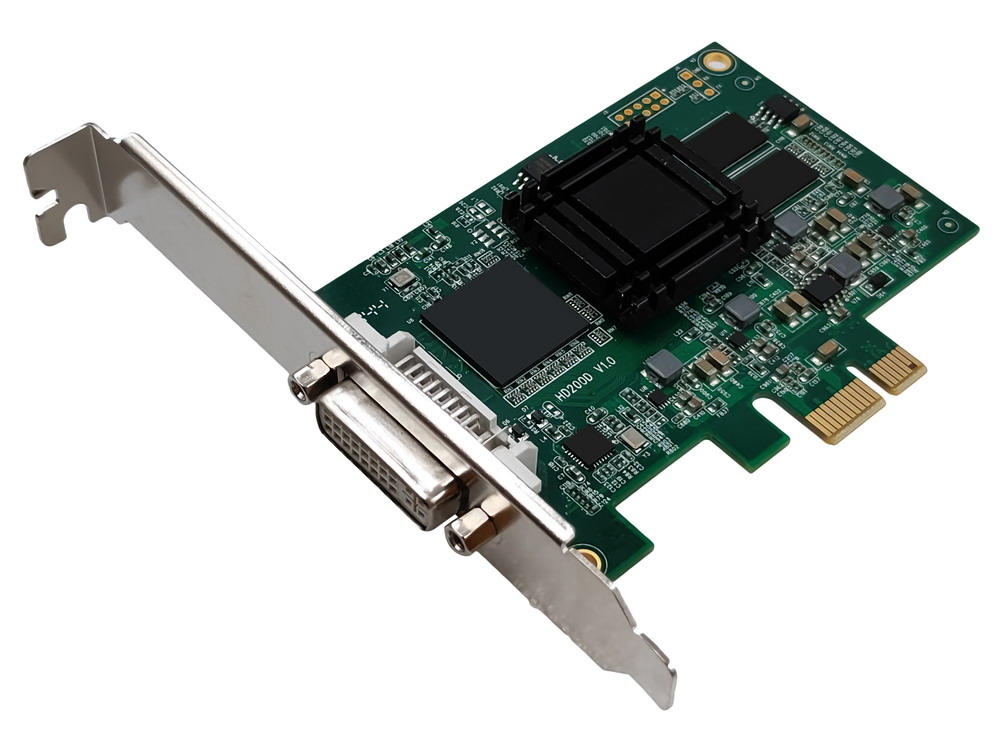

OPR-HD100D DVI Video Capture Card
Get more information, message us now!
- Description
- Specs
- Downloads
OPR-HD100D
PCI-Express Gen2 X1
DVI input
DVI/HDMI/VGA/ YPbPr Video Capture
Windows, Linux OS Supported
Interface
| Connection | |
| Host Interface | PCI-Express Gen2 X1 |

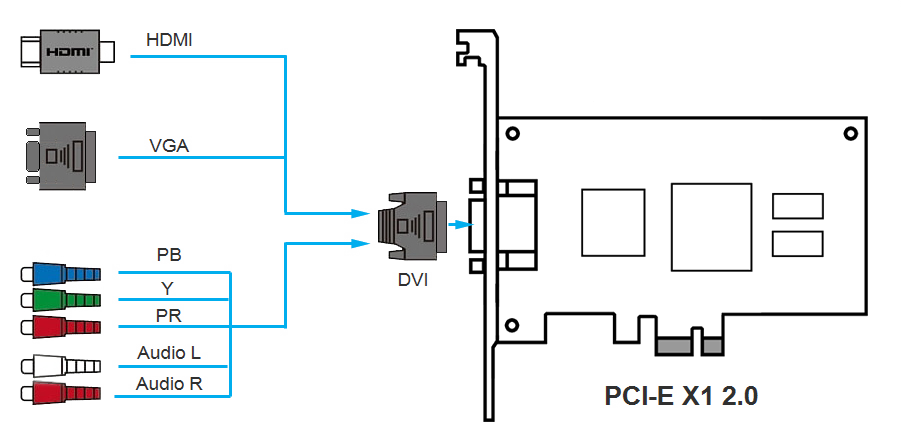

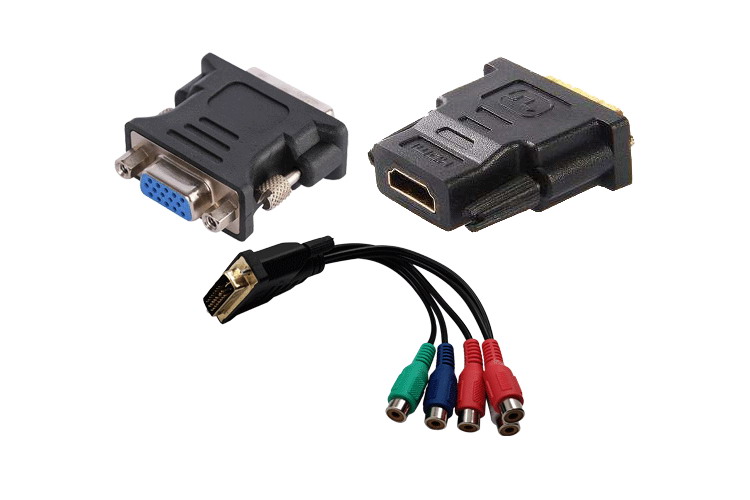

| Input Interface | BNC - SD/HD/3G SDI DVI-I DVI 1.0 HDMI 1.4a (via breakout cable) VGA (via DVI to VGA connector) Component (via breakout cable) Line in-3.5mm Phone Jack |
| HDMI Specific Features | 225MHz HDMI receiver Adaptive HDMI equalizer support for cables lengths up to 30M Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling |
| VGA Specific Features | L2-bit ADC Support for RGB & YCbCr (YUV) color formats Support for ‘Separated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY) Support for DMT, CEA, CVT, GTF video timings Input signals up to 165MHz pixel rate are digitized with 1:1 sampling |
| Video Processing | |
| Switch of Color Space | Hardware Color Switch |
| De-interlacing | Vertical filter de-interlacing; motion-adaptive de-interlacing |
| Others | |
| OS Support | Support the following operating systems, including x86 and x64: Windows 7 / 8 /10 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) |
| Software Compatibility | VLC OBS XSplit Wirecast VidBlaster VirtualDub Windows Media Encoder Adobe Flash Media Live Encoder |
| Size(L*H) | 93mm*63.4mm |
| Power Consumption | <= 5W |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-70℃ |
| Relative humidity | 5%-90% |
