OPR-4K100H 4K HDMI Video Capture Card
Get more information, message us now!
- Description
- Specs
- Downloads
OPR-4K100H 4K HDMI Video Capture Card
PCI-Express Gen2 X4
One-channel 4K capture card
Loop-through 4K HDMI + embedded audio

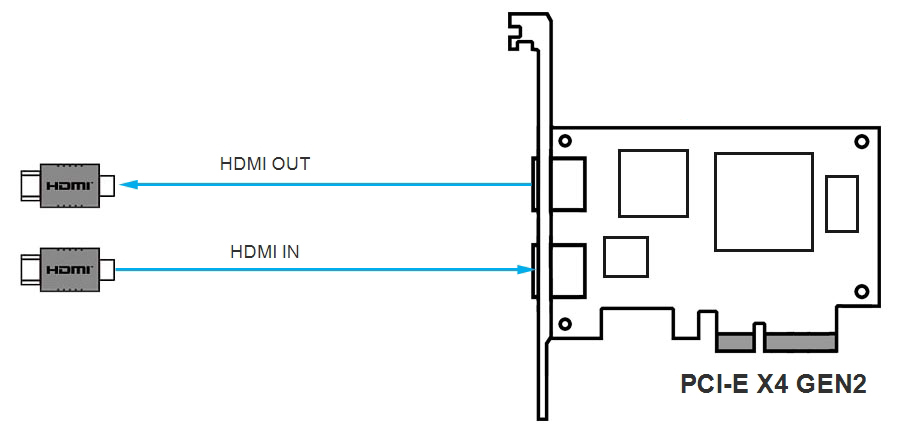

Interface
| Connection | |
| Host Interface | PCI-Express Gen2 X4 |
| Input Interface |
HDMI X2 |
| HDMI input resolution | 640x480p(60/72/75/80HZ), 800x600p(60/72/75/85HZ), 1024x768p(70/75/85HZ), 1280x768p(60/75/85HZ), 1280x960p(60//85HZ), 1280x1024p(60/75/85HZ), 1600x1024p60,1600x1200p60, 1680x1050p60, 1920x1080p60, 920x1200p60, 1152x870p75, 1152x864p75, 1024x576p60, 1280x720p60, 1360x768p60, 1440x788p60, 1440x960p72, 1440x1050p60. 4096*2160p 60/30/25HZ, 3840*2160p 60/30/25HZ, 1920x1080p (60/59.54/50 /30/29.97/25/24/23.976), 1920x1080i(60/59.54/50 /30/29.97/25), 1280x720p (120/100/60/59.54/50 /30/29.97/25/24/23.976). |
| Video Processing | |
| Switch of Color Space | Hardware Color Switch |
| De-interlacing | Vertical filter de-interlacing; motion-adaptive de-interlacing |
| Others | |
| OS Support | Support the following operating systems, including x86 and x64: Windows 7 / 8 /10 Windows Server 2008 R2 Linux (Kernel version 2.6.38 and above) |
| Software Compatibility | VLC OBS XSplit Wirecast VidBlaster VirtualDub Windows Media Encoder Adobe Flash Media Live Encoder |
| Size(L*H) | 93mm*63.4mm |
| Power Consumption | <= 5W |
| Operating temperature | 0-50℃ |
| Storage temperature | -20-70℃ |
| Relative humidity | 5%-90% |
